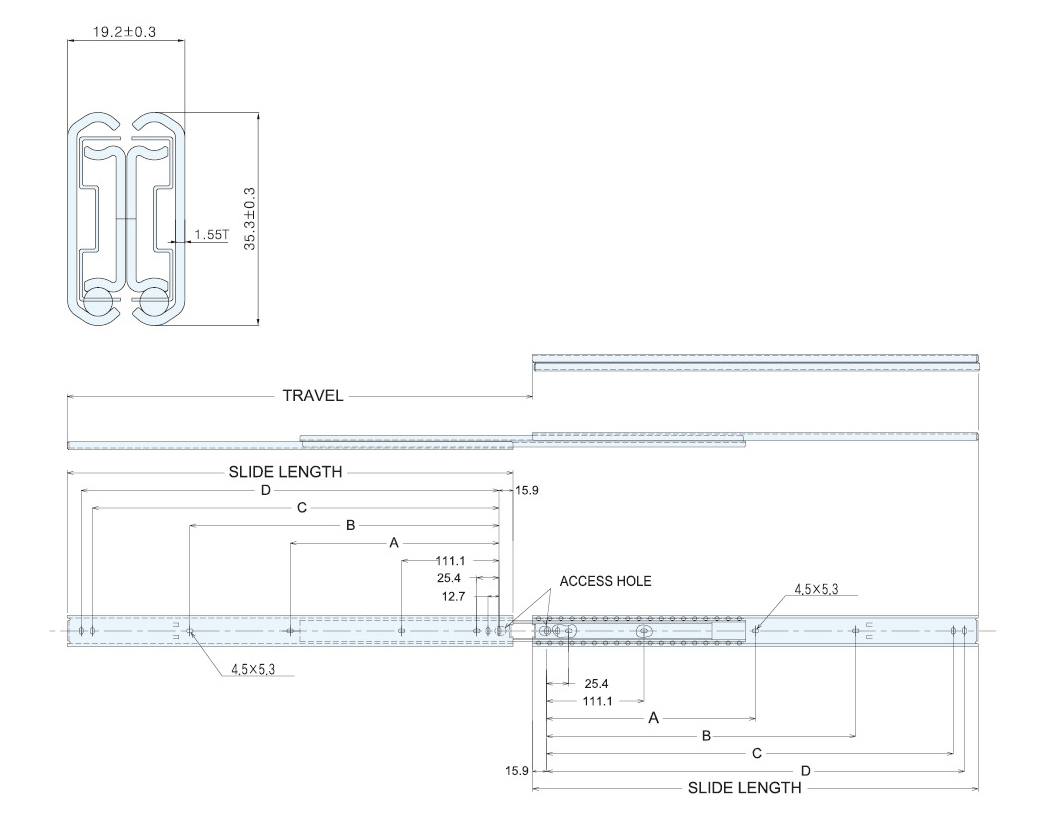

Model Name	Code Number	Slide Length ±0.3mm	Travel ±1.5mm	KD-253 SERIES HOLE POSITIONS(mm)				Load Rating
				A	B	C	D
KD-253-12	KD00217	304.8	327	–	149.2	260.3	273	40
KD-253-14	KD00218	355.6	378	–	200	311.1	323.8	39
KD-253-16	KD00219	406.4	429	–	250.8	361.9	374.6	39
KD-253-18	KD00220	457.2	479	212.7	301.6	412.7	425.4	38
KD-253-20	KD00221	508	530	238.1	352.4	463.5	476.2	37
KD-253-22	KD00222	558.8	581	263.5	403.2	514.3	527	36
KD-253-24	KD00223	609.6	632	288.9	454	565.1	577.8	35
KD-253-26	KD02426	660.4	683	314.3	504.8	615.9	628.6	34
KD-253-28	KD00224	711.2	733	339.7	555.6	660.7	679.4	33
