D-24 KD-255

Brand / Brand:

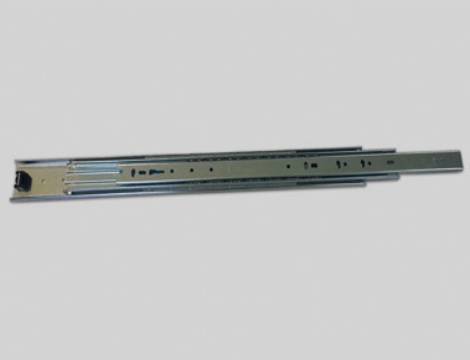

Slide Rail

Features

• Slide section uses ball bearing so movement is smooth.
•
Ball bearing system contributes to great impact and vibration resistance.

Specification

• Materials Used : Cold rolling steel shet(SCP)
•
Finish : Zinc Plating(MFZn)

Use

• Computer peripherals, vending machines, photocopiers,
communication and medical equipment,
communication and medical and
measuring equipment. Etc.

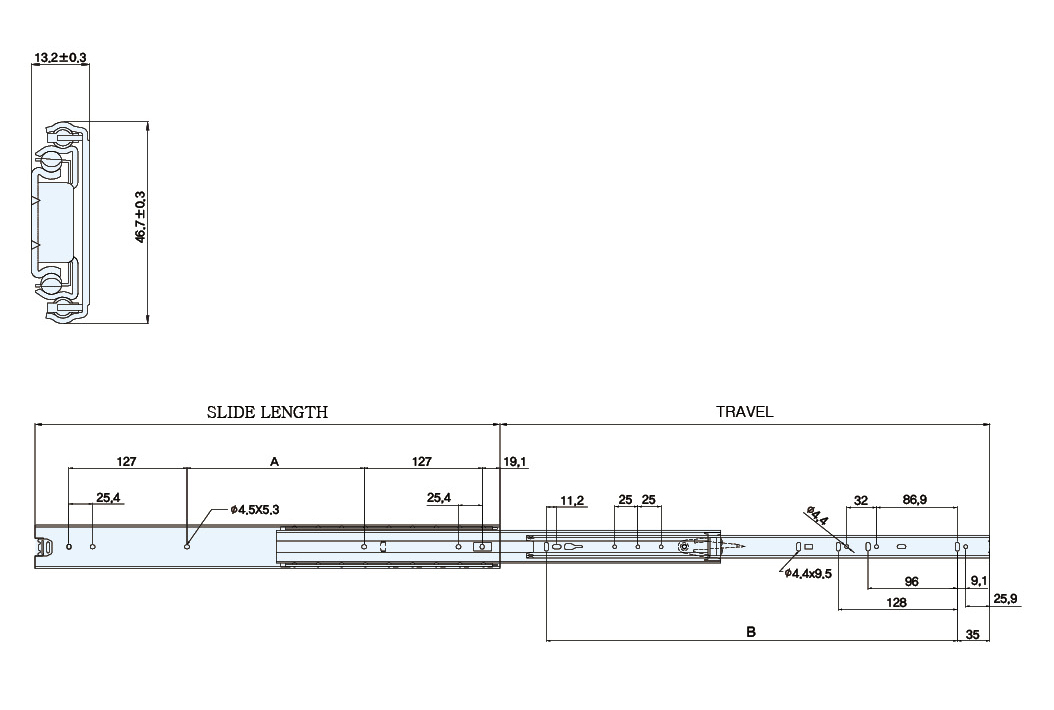

Model Name	Code Number	Slide Length ±0.3mm	Travel ±1.5mm	KD-255SERIES HOLE POSITIONS(mm)		Load Rating
Model Name	Code Number	Slide Length ±0.3mm	Travel ±1.5mm	A	B	Load Rating
KD-255-12	KD02434	304.8	328.6	12.7	240.4	58
KD-255-14	KD02435	355.6	379.4	63.5	291.2	56
KD-255-16	KD02436	406.4	430.2	114.3	342	54
KD-255-18	KD02437	457.2	481	165.1	392.8	52
KD-255-20	KD00226	508	531.8	215.9	443.6	44
KD-255-22	KD02438	558.8	581.8	266.7	494.4	43
KD-255-24	KD02439	609.6	609	317.5	545.2	42
KD-255-26	KD02440	660.4	660	368.3	596	41
KD-255-28	KD02441	711.2	711	419.1	646.8	40

Specializes in providing standard mechanical components for automation machines
