D-27 KD-270

Brand / Brand:

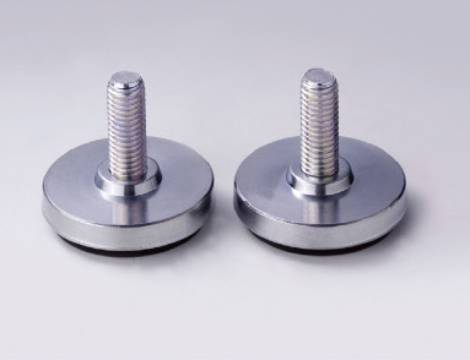

Level Adjuster

Features

• Various options to select the desired one based on the specification.
•
Suited for heavy weight.

Specification

• Materials Used : Cover, Catch plate-Zinc alloy (ZDCII), Base-ABS, Shaft-SWRM
•
Finish : Cover, Catch plate-Chrome plating(MZCr), Shaft-Zinc plating(MFZn)
•
Vertical allowable load : 100kgf

Use

• IT equipment, Semiconductor equipment,
Distributing panel, Control panel, Industrial
machinery, Physico-chemistry instruments,
Testing apparatus, etc.

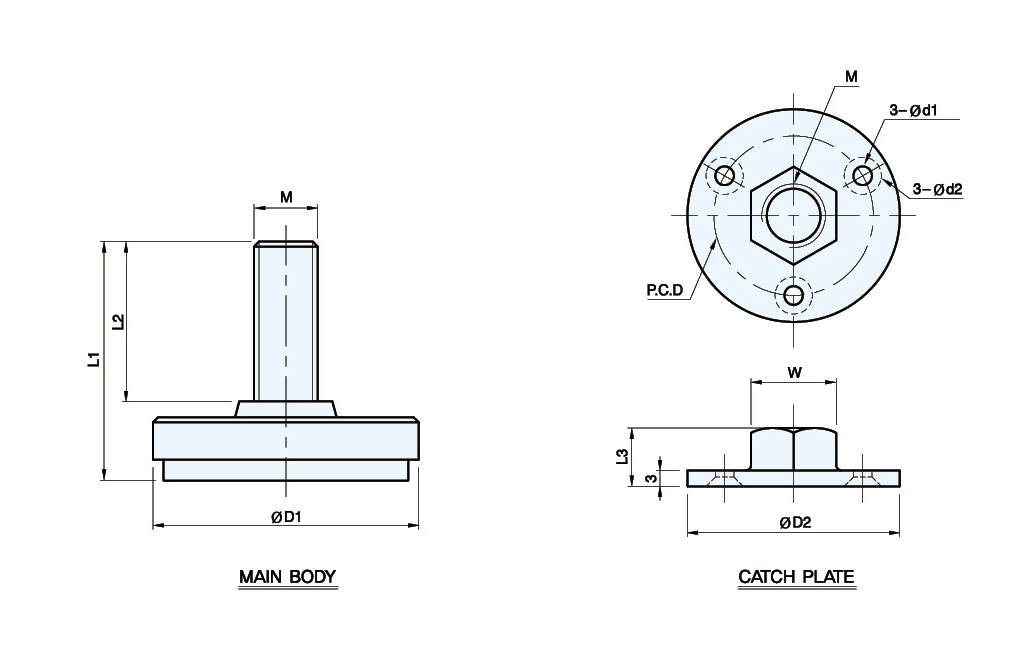

Model Name	Code Number	L1	L2	L3	W	ФD1	ФD2	Фd1	Фd2	M	PCD
KD-270-1	KD00259	45	30	11	16	50	40	3.5	7	M12	30
KD-270-2	KD00260	40	26	9	13	45	28	3.2	6	M10	20
KD-270-3	KD00261	39.5	26.5			40
KD-270-4	KD00262	38.5	26.5			36
KD-270-5	KD00263	38	26.5			32
KD-270-6	KD00264	35	24	8	11	28	25		LJ	M8	19
KD-270-7	KD00265	35	24	8	11	25	25		LJ	M8	19
