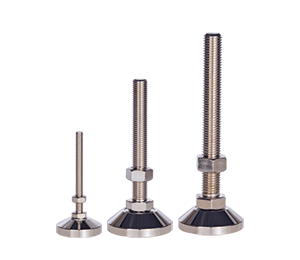

F Series
Brand / Brand:
Our levelers are popular because there is less damage and no problem with bending when adjusting the height by applying a high-quality bolt. They are chosen by customers thanks to their anti-vibration function and better durability.
They are used in many places such as conveyor lines, various stage devices, research equipment, medical racks, heavy industry, construction, etc.
● Bolt/Nut
ㆍCarbon Steel
● Pad
ㆍForged Steel
● Finish
ㆍNi plated / Polishing

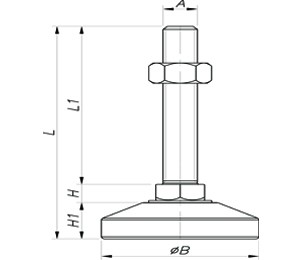

| Model | Dimension | Material | Load Capacity (kg/4PCS) |
||||||
| L1 | L | H1 | H | B | A | Bolt/Nut | Pad | ||
| F-10 | 60 | 86 | 18 | 8 | Ø55 | M10x1.5 | Carbon Steel | Forged Steel | 1000 |
| 100 | 126 | ||||||||
| F-12 | 60 | 87 | 9 | M12x1.75 | 1500 | ||||
| 90 | 117 | ||||||||
| 120 | 147 | ||||||||
| 150 | 177 | ||||||||
| F-16 | 50 | 86 | 25 | 11 | Ø80 | M16x2.0 | 2000 | ||
| 80 | 116 | ||||||||
| 100 | 136 | ||||||||
| 130 | 166 | ||||||||
| 150 | 186 | ||||||||
| 180 | 216 | ||||||||
| 200 | 236 | ||||||||
| F-20 | 100 | 139 | 14 | M20x2.5 | 3000 | ||||
| 130 | 169 | ||||||||
| 150 | 189 | ||||||||
| 180 | 219 | ||||||||
| 200 | 239 | ||||||||
| F-24 | 150 | 191 | 16 | M24x3.0 | 4000 | ||||
| 200 | 241 | ||||||||
| Meterial | Surface Treatment |
| Carbon & Forged Steel | Ni Plated |
| Model | Dimension | Material | Load Capacity (kg/4PCS) |
||||||
| L1 | L | H1 | H | B | A | Bolt/Nut | Pad | ||
| F-10 | 2 3/8″ | 3 3/8″ | 23/32″ | 5/16″ | 2 5/32″ | M10x1.5 | Carbon Steel | Forged Steel | 2200 lbs |
| 3 15/16″ | 4 31/32″ | ||||||||
| F-12 | 2 3/8″ | 3 7/16″ | 11/32″ | M12x1.75 | 3300 lbs | ||||
| 2 17/32″ | 4 19/32″ | ||||||||
| 4 23/32″ | 5 25/32″ | ||||||||
| 5 29/32″ | 6 31/32″ | ||||||||
| F-16 | 1 31/32″ | 3 3/8″ | 1″ | 7/16″ | 3 5/32″ | M16x2.0 | 4400 lbs | ||
| 3 5/32″ | 4 9/162″ | ||||||||
| 3 15/16″ | 5 11/32″ | ||||||||
| 5 1/8″ | 6 17/32″ | ||||||||
| 5 29/32″ | 7 5/16″ | ||||||||
| 7 3/32″ | 8 1/2″ | ||||||||
| 7 7/8″ | 9 9/32″ | ||||||||
| F-20 | 3 15/16″ | 5 15/32″ | 9/16″ | M20x2.5 | 6600 lbs | ||||
| 5 1/8″ | 6 21/32″ | ||||||||
| 5 29/32″ | 7 7/16″ | ||||||||
| 7 3/32″ | 8 5/8″ | ||||||||
| 7 7/8″ | 9 13/32″ | ||||||||
| F-24 | 5 29/32″ | 2 1/4″ | 5/8″ | M24x3.0 | 8800 lbs | ||||
| 7 7/8″ | 7 17/32″ | ||||||||
| Meterial | Surface Treatment |
| Carbon & Forged Steel | Ni Plated |
