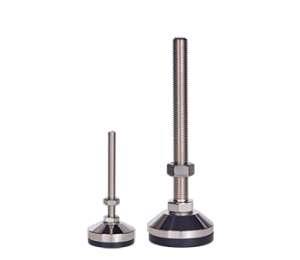

FR Series
Brand / Brand:
Our levelers are popular because there is less damage and no problem with bending when adjusting the height by applying a high-quality bolt. They are chosen by customers thanks to their anti-vibration function and better durability.
They are used in many places such as conveyor lines, various stage devices, research equipment, medical racks, heavy industry, construction, etc.
● Bolt/Nut
ㆍCarbon Steel
● Pad
ㆍForged Steel + NBR
● Finish
ㆍNi plated / Polishing

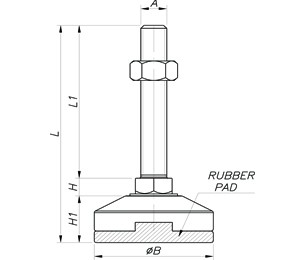

| Model | Dimension | Material | Load Capacity (kg/4PCS) |
||||||
| L1 | L | H1 | H | B | A | Bolt/Nut | Pad | ||
| FR-10 | 60 | 92.5 | 24.5 | 8 | Ø55 | M10x1.5 | Carbon Steel | Forged Steel & NBR | 1000 |
| 100 | 132.5 | ||||||||
| FR-12 | 60 | 93.5 | 9 | M12x1.75 | 1500 | ||||
| 90 | 123.5 | ||||||||
| 120 | 153.5 | ||||||||
| 150 | 183.5 | ||||||||
| FR-16 | 50 | 96 | 35 | 11 | Ø80 | M16x2.0 | Carbon Steel | Forged Steel & NBR | 2000 |
| 80 | 126 | ||||||||
| 100 | 146 | ||||||||
| 130 | 176 | ||||||||
| 150 | 196 | ||||||||
| 180 | 226 | ||||||||
| 200 | 246 | ||||||||
| FR-20 | 100 | 149 | 14 | M20x2.5 | 3000 | ||||
| 130 | 179 | ||||||||
| 150 | 199 | ||||||||
| 180 | 229 | ||||||||
| 200 | 249 | ||||||||
| FR-24 | 150 | 201 | 16 | M24x3.0 | Carbon Steel | Forged Steel & NBR | 4000 | ||
| 200 | 251 | ||||||||
| Meterial | Surface Treatment |
| Carbon & Forged Steel | Ni Plated |
| Model | Dimension | Material | Load Capacity (kg/4PCS) |
||||||
| L1 | L | H1 | H | B | A | Bolt/Nut | Pad | ||
|
FR-10 |
2 3/8″ | 3 23/32″ | 31/32″ | 5/16″ | 2 5/32″ | M10x1.5 | Carbon Steel | Forged Steel & NBR | 2200 lbs |
| 3 15/16″ | 5 7/32″ | ||||||||
| FR-12 | 2 3/8″ | 3 11/16″ | 11/32″ | M12x1.75 | 3300 lbs | ||||
| 2 17/32″ | 4 7/8″ | ||||||||
| 4 23/32″ | 6 1/32″ | ||||||||
| 5 29/32″ | 7 7/32″ | ||||||||
| FR-16 | 1 31/32″ | 3 23/32″ | 1 1/4″ | 7/16″ | 3 5/32″ | M16x2.0 | Carbon Steel | Forged Steel & NBR | 4400 lbs |
| 3 5/32″ | 4 13/36″ | ||||||||
| 3 15/16″ | 5 5/8″ | ||||||||
| 5 1/8″ | 6 25/32″ | ||||||||
| 5 29/32″ | 7 19/32″ | ||||||||
| 7 3/32″ | 8 3/4″ | ||||||||
| 7 7/8″ | 9 9/16″ | ||||||||
| FR-20 | 3 15/16″ | 5 3/4″ | 9/16″ | M20x2.5 | 6600 lbs | ||||
| 5 1/8″ | 6 15/16″ | ||||||||
| 5 29/32″ | 7 11/16″ | ||||||||
| 7 3/32″ | 8 1/2″ | ||||||||
| 7 7/8″ | 9 1/4″ | ||||||||
| FR-24 | 5 29/32″ | 2 1/4″ | 5/8″ | M24x3.0 | Carbon Steel | Forged Steel & NBR | 8800 lbs | ||
| 7 7/8″ | 7 17/32″ | ||||||||
| Meterial | Surface Treatment |
| Carbon & Forged Steel | Ni Plated |
