Anti-static
-
- Model: G-150-ASF/BSF/ARF/BRF-LUD-WEU
www.cokhitieuchuan.com
MAKING IT EASIER
G-150-ASF/ARF/BSF/BRF-LUD
Brand / Brand:

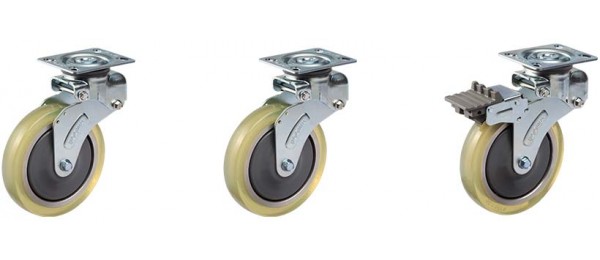

● Model
ㆍG-150-ASF-LUD(Swivel)
ㆍG-150-ARF-LUD(Rigid)
ㆍG-150-BSF-LUD(Swivel with brake)
ㆍG-150-BRF-LUD(Rigid with brake)
● Spring hardness selectable
ㆍ(50º or 70º) / (Standard 70º)
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, strong integrated pressed steel frame, dust protection cover in the swivel head, fine shock absorption function with special rubber, smooth-operating top brake system, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: Cast polyurethane(Shore A90), aluminum core, two ball bearings
| Wheel Diameter | 150 mm |
| Width of Tread | 30 mm |
| Hardness of Tread | 90 Shore A |

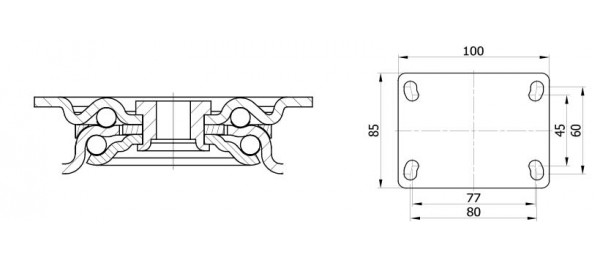

| Size of Plate | 100 x 85 mm |
| Plate Hole Centers | 80 x 60 or 77 x 45 mm |
| Plate Hole | 9mm |
| Shock Absorbing Extent | 10mm |
| Offset | 50 ~ 57 mm |
| Overall Height | 200 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 120 kg |
| Load Capacity / 4pcs | 360 kg |
| Wheel Diameter | 5.9 “ |
| Width of Tread | 1.18 “ |
| Hardness of Tread | 90 Shore A |
| Size of Plate | 3.93 x 3.34 “ |
| Plate Hole Centers | 3.14 x 2.36 or 3.03 x 1.77“ |
| Plate Hole | 0.35 “ |
| Shock Absorbing Extent | 0.39 “ |
| Offset | 1.97 x 2.25 “ |
| Overall Height | 7.87 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 265 lbs |
| Load Capacity / 4pcs | 794 lbs |
