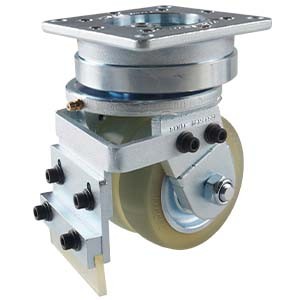

Sweeper
-
- Model: GAGD-125-ASF-HUD-SCP
www.cokhitieuchuan.com
MAKING IT EASIER
GAGD-125-ASF-HUD
Brand / Brand:
● Model

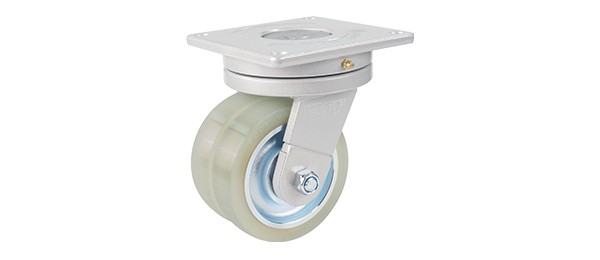

ㆍGAGD-125-ASF-HUD(Swivel)

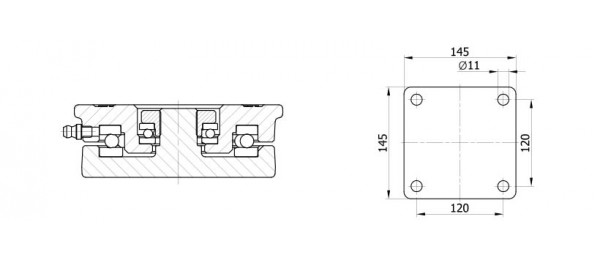

* Brackets: Forged steel plate, double thrust bearing in the swivel head to optimize the heavy load, grease nipple, strong welded frame, bolted wheel axle structure
* Surface Treatment: Powder coating,Zinc plated
* Wheel: Cast polyurethane(Shore A95), steel core, two ball bearings
| Wheel Diameter | 125mm |
| Width of Tread | 35 x 2 mm |
| Hardness of Tread | 95 Shore A |
| Size of Plate | 145 x 145 mm |
| Plate Hole Centers | 120 x 120 mm |
| Plate Hole | 11 mm |
| Offset | 33 mm |
| Overall Height | 175 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 440 kg |
| Load Capacity / 4pcs | 1,320 kg |
| Wheel Diameter | 4.92 “ |
| Width of Tread | 1.37 x 2 “ |
| Hardness of Tread | 95 Shore A |
| Size of Plate | 5.70 x 5.70 “ |
| Plate Hole Centers | 4.72 x 4.72 “ |
| Plate Hole | 0.43 “ |
| Offset | 1.29 “ |
| Overall Height | 6.88 “ |
| Temperature | 14 ~ 194 ℉ |
| Load Capacity / 1pcs | 970 lbs |
| Load Capacity / 4pcs | 2,910 lbs |
