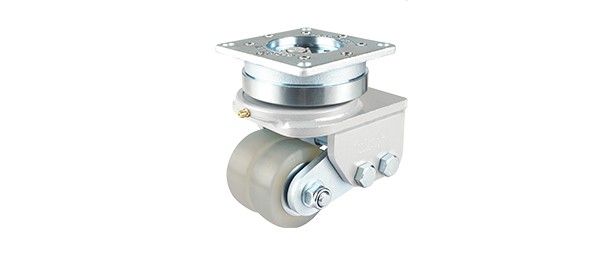

GAMS-75-ASF-HUD
Brand / Brand:
● Model
ㆍGAMS-75-ASF-HUD(Swivel)
ㆍPatented
* Brackets: Forged steel plate, double thrust bearings + one-row ballbearing in the swivel head to optimize the heavy load, grease nipple, strong welded frame, minute shock absorption function, and constant contact function to the floor with special rubber, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore A95), steel core, two ball bearings
* Dual Swivel Structure + Shock Absorbing Function
| Wheel Diameter | 75 mm |
| Width of Tread | 30 x 2 mm |
| Hardness of Tread | 95 Shore A |

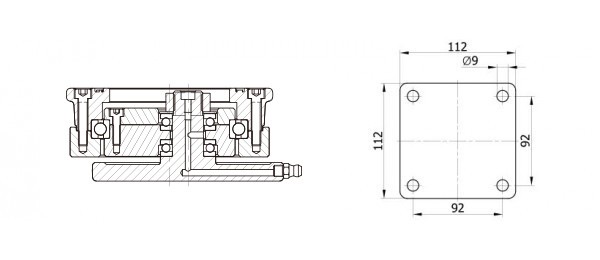

| Size of Plate | 112 x 112 mm |
| Plate Hole Centers | 92 x 92 mm |
| Plate Hole | 9mm |
| Offset | 10 ~ 30 mm |
| Overall Height | 150 – 10 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 250 kg |
| Load Capacity / 4pcs | 750 kg |
| Wheel Diameter | 2.95 “ |
| Width of Tread | 1.18 x 2 “ |
| Hardness of Tread | 95 Shore A |
| Size of Plate | 4.40 x 4.40 “ |
| Plate Hole Centers | 3.62 x 3.62 “ |
| Plate Hole | 0.35 “ |
| Offset | 0.39 ~ 1.18 “ |
| Overall Height | 5.90 – 0.39 “ |
| Temperature | 14 ~ 194 ℉ |
| Load Capacity / 1pcs | 551 lbs |
| Load Capacity / 4pcs | 1,653 lbs |
