GATD-100-ASF-NUD
Brand / Brand:
● Model

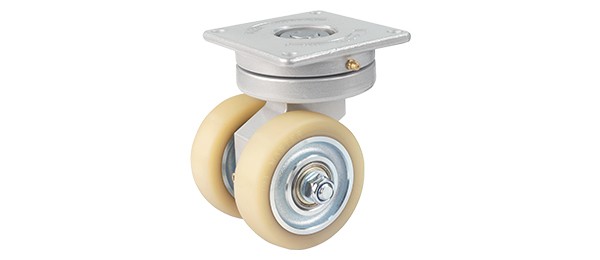

ㆍGATD-100-ASF-NUD(Swivel)

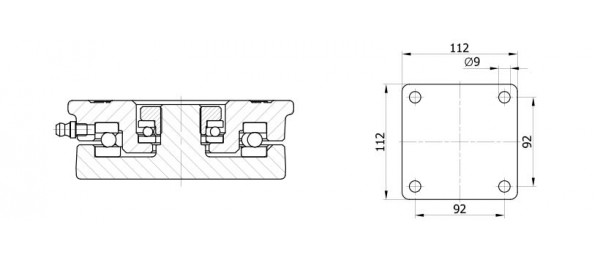

* Brackets: Forged steel plate, double thrust bearing in the swivel head to optimize heavy load, grease nipple, strong welded frame, tilting function to maintain contact with uneven floor, bolted wheel axle structure
* Surface Treatment: Powder coating,Zinc plated
* Wheel: Cast polyurethane(Shore A95), steel core, two ball bearings
| Wheel Diameter | 100mm |
| Width of Tread | 30 x 2 mm |
| Hardness of Tread | 95 Shore A |
| Size of Plate | 112 x 112 mm |
| Plate Hole Centers | 92 x 92 mm |
| Plate Hole | 9mm |
| Offset | 30 mm |
| Overall Height | 150 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 310 kg |
| Load Capacity / 4pcs | 930 kg |
| Wheel Diameter | 3.93 “ |
| Width of Tread | 1.18 x 2 “ |
| Hardness of Tread | 95 Shore A |
| Size of Plate | 4.40 x 4.40 “ |
| Plate Hole Centers | 3.62 x 3.62 “ |
| Plate Hole | 0.35 “ |
| Offset | 1.18 “ |
| Overall Height | 5.90 “ |
| Temperature | 14 ~ 194 ℉ |
| Load Capacity / 1pcs | 683 lbs |
| Load Capacity / 4pcs | 2,050 lbs |
