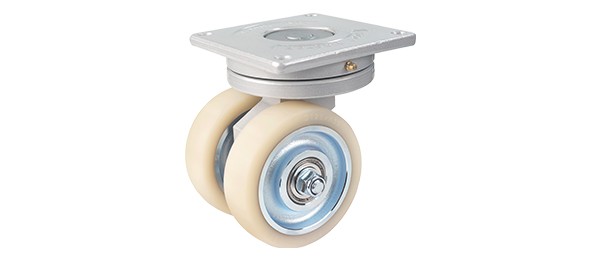

GATD-125-ASF-NUD
Brand / Brand:
● Model
ㆍGATD-125-ASF-NUD(Swivel)
* Brackets: Forged steel plate, double thrust bearing in the swivel head to optimize heavy load, grease nipple, strong welded frame, tilting function to maintain contact with uneven floor, bolted wheel axle structure
* Surface Treatment: Powder coating,Zinc plated
* Wheel: Cast polyurethane(Shore A95), steel core, two ball bearings
| Wheel Diameter | 125mm |
| Width of Tread | 35 x 2 mm |
| Hardness of Tread | 95 Shore A |

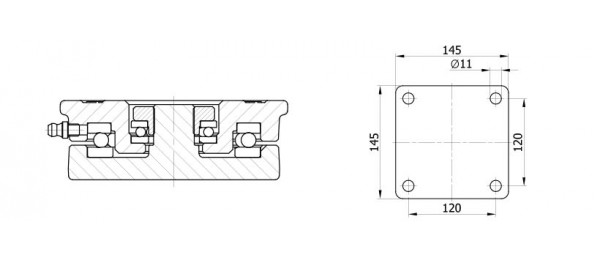

| Size of Plate | 145 x 145 mm |
| Plate Hole Centers | 120 x 120 mm |
| Plate Hole | 11 mm |
| Offset | 33 mm |
| Overall Height | 175 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 440 kg |
| Load Capacity / 4pcs | 1,320 kg |
| Wheel Diameter | 4.92 “ |
| Width of Tread | 1.37 x 2 “ |
| Hardness of Tread | 95 Shore A |
| Size of Plate | 5.70 x 5.70 “ |
| Plate Hole Centers | 4.72 x 4.72 “ |
| Plate Hole | 0.43 “ |
| Offset | 1.30 “ |
| Overall Height | 6.88 “ |
| Temperature | 14 ~ 194 ℉ |
| Load Capacity / 1pcs | 970 lbs |
| Load Capacity / 4pcs | 2,910 lbs |
