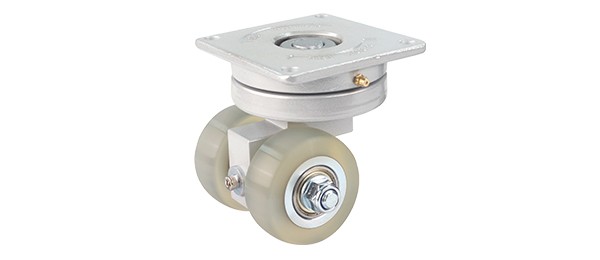

GATD-75-ASF-HUD
Brand / Brand:
● Model
ㆍGATD-75-ASF-HUD(Swivel)

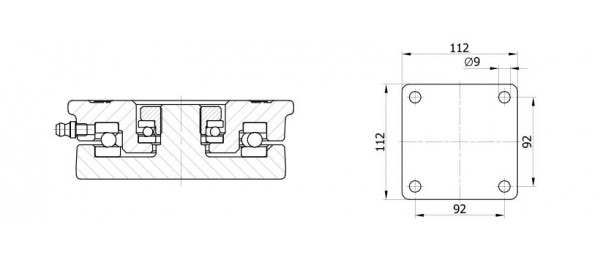

* Brackets: Forged steel plate, double thrust bearing in the swivel head to optimize heavy load, grease nipple, strong welded frame, tilting function to maintain contact with uneven floor, bolted wheel axle structure
* Surface Treatment: Powder coating,Zinc plated
* Wheel: Cast polyurethane(Shore A95), steel core, two ball bearings
| Wheel Diameter | 75 mm |
| Width of Tread | 30 x 2 mm |
| Hardness of Tread | 95 Shore A |
| Size of Plate | 112 x 112 mm |
| Plate Hole Centers | 92 x 92 mm |
| Plate Hole | 9mm |
| Offset | 30 mm |
| Overall Height | 123 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 250 kg |
| Load Capacity / 4pcs | 750 kg |
| Wheel Diameter | 2.95 “ |
| Width of Tread | 1.18 x 2 “ |
| Hardness of Tread | 95 Shore A |
| Size of Plate | 4.40 x 4.40 “ |
| Plate Hole Centers | 3.62 x 3.62 “ |
| Plate Hole | 0.35 “ |
| Offset | 1.18 “ |
| Overall Height | 4.84 “ |
| Temperature | 14 ~ 194 ℉ |
| Load Capacity / 1pcs | 551 lbs |
| Load Capacity / 4pcs | 1,653 lbs |
