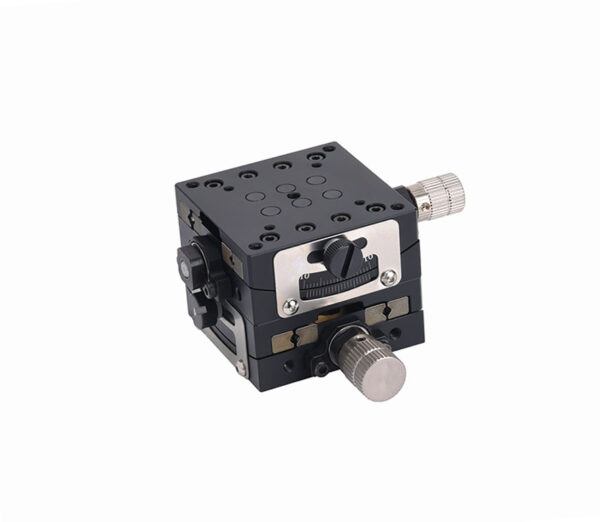

GBG2 > Manual Stage
Brand / Brand:
The amount of movement is read on the vernier scale.
How to read the vernier scale is as follows.
-
Read the zero position of the scale Ⓐ in mm on the scale Ⓑ (29mm in the picture on the right)
-
Look at the scale Ⓐ and read the scale Ⓒ that comes to the same position as the scale Ⓑ (matching between bottom and top scales) (the above figures in 0.1 mm increments)
-
The total measured value of (1) and (2) is 29.6 mm.
| Specification / Model | GBG2-40R4060 | GBG2-60R5075 | ||
|---|---|---|---|---|
| Stage Surface (mm) | 40 X 40 | 60 X 60 | ||
| Travel Distance | ± 8º｜ ± 6º | ± 8º｜ ± 8º | ||
| Height of Rotation Center | 40±0.2mm | 50±0.2mm | ||
| Guide | Ball Guide | Ball Guide | ||
| Drive (Moderating Ratio) | Worm & Gear (1/240) | Worm & Gear (1/160) Worm & Gear (1/225) | ||
| Rotation Angle | 1.5º | 2.25º ｜1.6º | ||
| Stage Height | 40±0.4mm | 50±0.4mm | ||
| Load Capacity (kg) | 2 | 4 | ||
| Material | Aluminum | Aluminum | ||
| Weight(kg) | 0.5 | 0.7 |

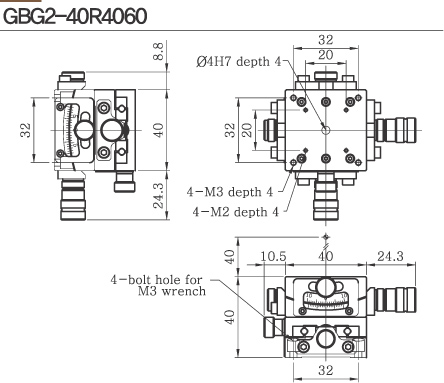

GBG2-40R4060

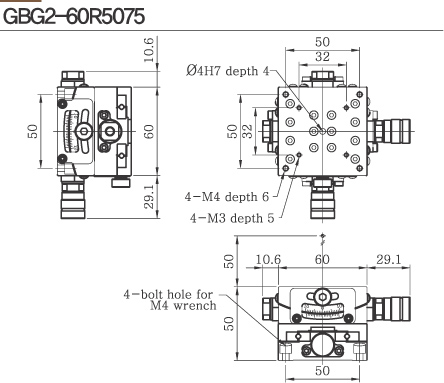

GBG2-60R5075
