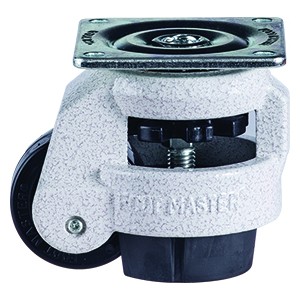

Anti-static
-
- Model: GD-100-F-NYN-PEU-CEN

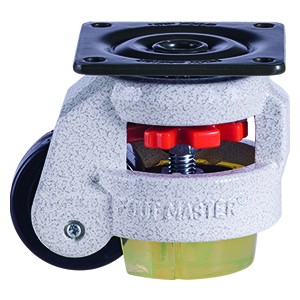

Polyurethane pad
-
- Model: GD-100-F-NYN-PEU-CUR

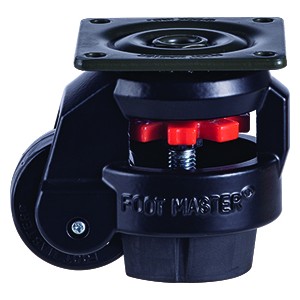

Black frame
-
- Model: GD-100-F-NYN-PEU-FBL
www.cokhitieuchuan.com
MAKING IT EASIER

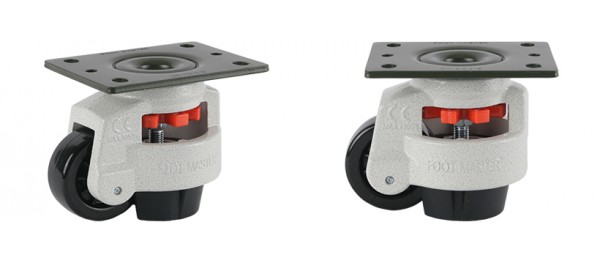

GD-100-PEU-F-NYN
Brand / Brand:
● Model
ㆍGD-100-F-NYN-PEU
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, height adjustment with integrated orange handle or spanner, anti-vibration NBR pad
* Surface Treatment: Powder coating, zinc plated
* Wheel: Nylon66(Shore D70), no bearing
| Wheel Diameter | 75 mm |
| Width of Tread | 30 mm |
| Hardness of Tread | 70 Shore D |

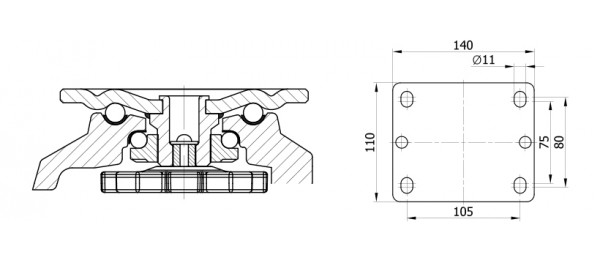

| Size of Plate | 140 x 110 mm |
| Plate Hole Centers | 105 x 80 mm or 105 x 75 mm |
| Plate Hole | 11 mm |
| Leveling Extent | 12 mm |
| Offset | 53 mm |
| Overall Height | 120 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 800 kg |
| Load Capacity / 4pcs | 1,600 kg |
| Wheel Diameter | 2.95 “ |
| Width of Tread | 1.18 “ |
| Hardness of Tread | 70 Shore D |
| Size of Plate | 5.51 x 4.33 “ |
| Plate Hole Centers | 4.13 x 3.15 ” or 4.13 x 2.95 “ |
| Plate Hole | 0.43 “ |
| Leveling Extent | 0.47 “ |
| Offset | 2.08 “ |
| Overall Height | 4.72 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 1,764 lbs |
| Load Capacity / 4pcs | 3,527 lbs |
