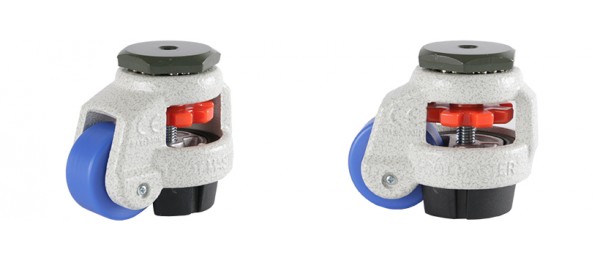

GD-40-S-MCN
Brand / Brand:
● Model
ㆍGD-40-S-MCN
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, height adjustment with integrated orange handle or spanner, anti-vibration NBR pad
* Surface Treatment: Powder coating, zinc plated
* Wheel: MC nylon(Shore D80), no bearing
| Wheel Diameter | 40mm |
| Width of Tread | 19 mm |
| Hardness of Tread | 80 Shore D |

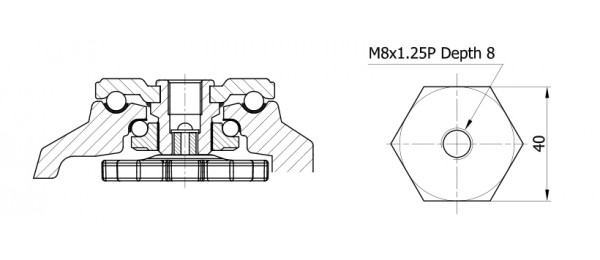

| Center Bolt | M8 x 1.25P |
| Bolt Length | 10mm |
| Leveling Extent | 10mm |
| Offset | 30 mm |
| Overall Height | 70mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 60 kg |
| Load Capacity / 4pcs | 120 kg |
| Wheel Diameter | 1.57 “ |
| Width of Tread | 0.74 “ |
| Hardness of Tread | 80 Shore D |
| Center Bolt | M12 x 1.75P or M16 x 2.0P |
| Bolt Length | 0.71 “ |
| Leveling Extent | 0.39 “ |
| Offset | 1.41 “ |
| Overall Height | 2.75 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 617 lbs |
| Load Capacity / 4pcs | 1,235 lbs |
