Anti-static
-
- Model: GD-40-S-NYN-CEN
Polyurethane pad
-
- Model: GD-40-S-NYN-CUR

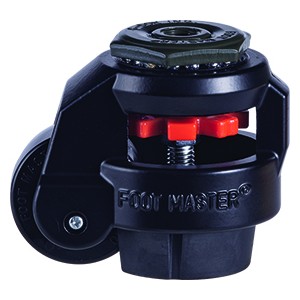

Black Frame
-
- Model: GD-40-S-NYN-FBL
www.cokhitieuchuan.com
MAKING IT EASIER

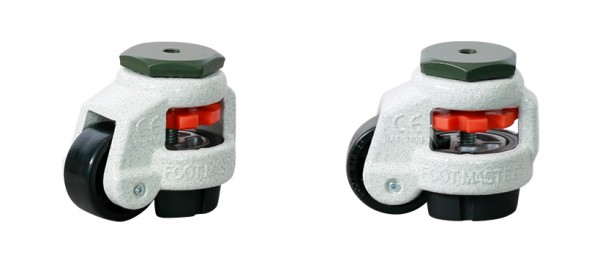

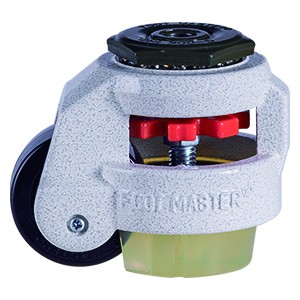

GD-40-S-NYN
Brand / Brand:
● Model
ㆍGD-40-S-NYN
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, height adjustment with integrated orange handle or spanner, anti-vibration NBR pad
* Surface Treatment: Powder coating, zinc plated
* Wheel: Nylon66(Shore D70), no bearing
| Wheel Diameter | 40mm |
| Width of Tread | 20 mm |
| Hardness of Tread | 70 Shore D |

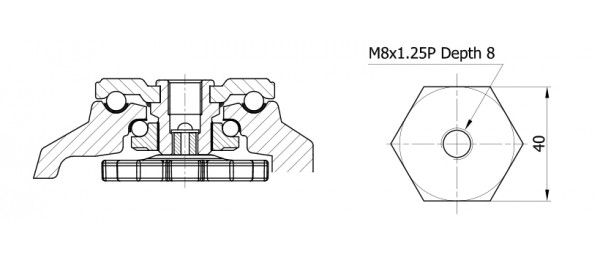

| Center Bolt | M8 x 1.25P |
| Bolt Length | 10mm |
| Leveling Extent | 10mm |
| Offset | 30 mm |
| Overall Height | 70mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 60 kg |
| Load Capacity / 4pcs | 120 kg |
| Wheel Diameter | 1.57 “ |
| Width of Tread | 0.79 “ |
| Hardness of Tread | 70 Shore D |
| Center Bolt | M8 x 1.25P |
| Bolt Length | 0.39 “ |
| Leveling Extent | 0.39 “ |
| Offset | 1.18 “ |
| Overall Height | 2.75 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 132 lbs |
| Load Capacity / 4pcs | 264 lbs |
