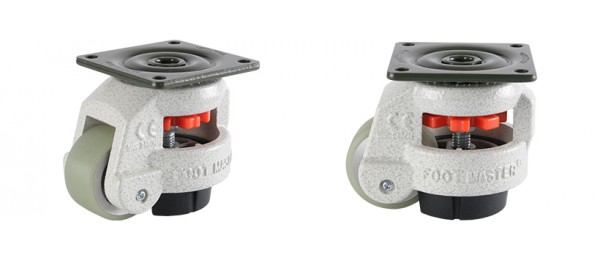

GD-60-F-HUP
Brand / Brand:
● Model
ㆍGD-60-F-HUP
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, height adjustment with integrated orange handle or spanner, anti-vibration NBR pad
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore D70), aluminum core, plain bearing
| Wheel Diameter | 50 mm |
| Width of Tread | 25mm |
| Hardness of Tread | 70 Shore D |

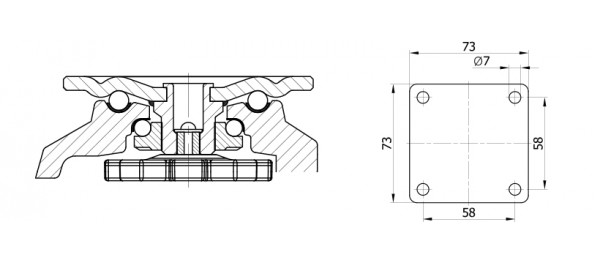

| Size of Plate | 73 x 73 mm |
| Plate Hole Centers | 58 x 58 mm |
| Plate Hole | 7 or 8.5 mm |
| Leveling Extent | 10mm |
| Offset | 36 mm |
| Overall Height | 82 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 280 kg |
| Load Capacity / 4pcs | 560 kg |
| Wheel Diameter | 1.97 “ |
| Width of Tread | 0.98 “ |
| Hardness of Tread | 70 Shore D |
| Size of Plate | 2.87 x 2.87 “ |
| Plate Hole Centers | 2.28 x 2.28 “ |
| Plate Hole | 0.28 or 0.33 “ |
| Leveling Extent | 0.39 “ |
| Offset | 1.41 “ |
| Overall Height | 3.22 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 617 lbs |
| Load Capacity / 4pcs | 1,235 lbs |
