GDC-125-ASF/ARF/BSF/BRF-LUD
Brand / Brand:

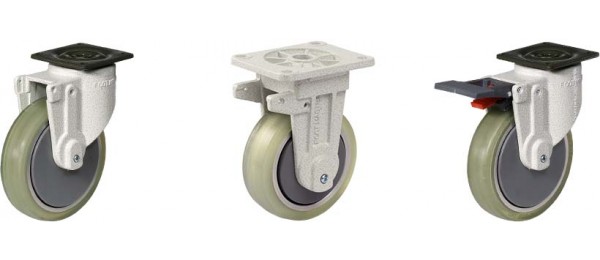

● Model
ㆍGDC-125-ASF-LUD(Swivel)
ㆍGDC-125-ARF-LUD(Rigid)
ㆍGDC-125-BSF-LUD(Swivel with brake)
ㆍGDC-125-BRF-LUD(Rigid with brake)
* Brackets: Pressed steel plate(Rigid type: Aluminum), double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, total-lock top brake system which is applied in wheel and swivel head simultaneously with independent locking and unlocking lever, bolted wheel axle structure, special type of wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore A90), aluminum core, two ball bearings
| Wheel Diameter | 125mm |
| Width of Tread | 30 mm |
| Hardness of Tread | 90 Shore A |

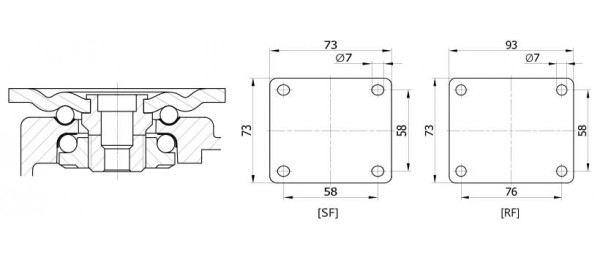

| Size of Plate | [SF] 73 x 73 , [RF] 93 x 73 mm |
| Plate Hole Centers | [SF] 58 x 58 , [RF] 76 x 58 mm |
| Plate Hole | 7 mm |
| Offset | 40mm |
| Overall Height | 162 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 120 kg |
| Load Capacity / 4pcs | 360 kg |
| Wheel Diameter | 4.91 “ |
| Width of Tread | 1.18 “ |
| Hardness of Tread | 90 Shore A |
| Size of Plate | [SF] 2.87 x 2.87 , [RF] 3.65 x 2.87 “ |
| Plate Hole Centers | [SF] 2.28 x 2.28 , [RF] 2.99 x 2.28 “ |
| Plate Hole | 0.28 “ |
| Offset | 1.57 “ |
| Overall Height | 6.37 “ |
| Temperature | 14 ~ 194 ℉ |
| Load Capacity / 1pcs | 264 lbs |
| Load Capacity / 4pcs | 792 lbs |
