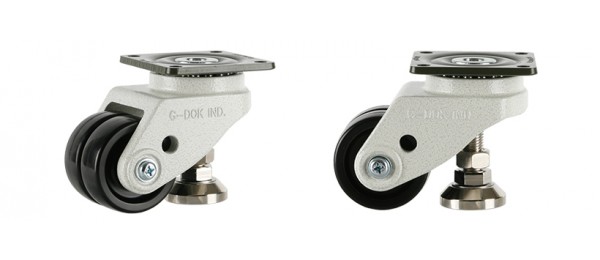

GDLD-75-ASF-NYN
Brand / Brand:
● Model
ㆍGDLD-75-ASF-NYN(Swivel)

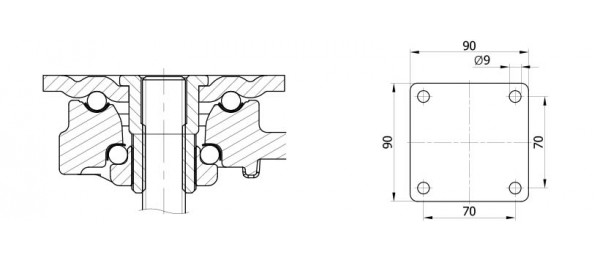

* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum fame, height adjustment with spanner, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: Nylon66(Shore D70), no bearing
| Wheel Diameter | 72 mm |
| Width of Tread | 25 x 2 mm |
| Hardness of Tread | 70 Shore D |
| Size of Plate | 90 x 90 mm |
| Plate Hole Centers | 70 x 70 mm |
| Plate Hole | 9.5 mm |
| Leveling Extent | 20 mm |
| Offset | 64 mm |
| Overall Height | 108 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 700 kg |
| Load Capacity / 4pcs | 2,100 kg |
| Wheel Diameter | 2.83 “ |
| Width of Tread | 0.98 x 2 “ |
| Hardness of Tread | 70 Shore D |
| Size of Plate | 3.54 x 3.54 “ |
| Plate Hole Centers | 2.75 x 2.75 “ |
| Plate Hole | 0.37 “ |
| Leveling Extent | 0.78 “ |
| Offset | 2.51 “ |
| Overall Height | 4.25 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 1,543 lbs |
| Load Capacity / 4pcs | 4,629 lbs |
