Anti-static
-
- Model: GDN-60-S-NYN-CEN

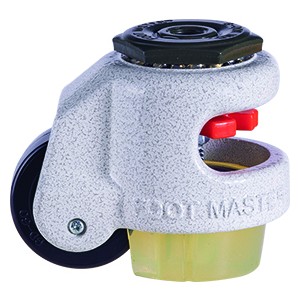

Polyurethane pad
-
- Model: GDN-60-S-NYN-CUR

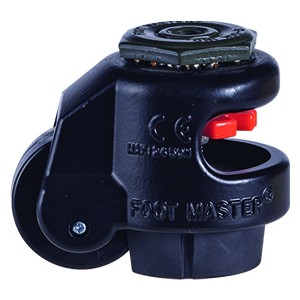

Black frame
-
- Model: GDN-60-S-NYN-FBL
www.cokhitieuchuan.com
MAKING IT EASIER

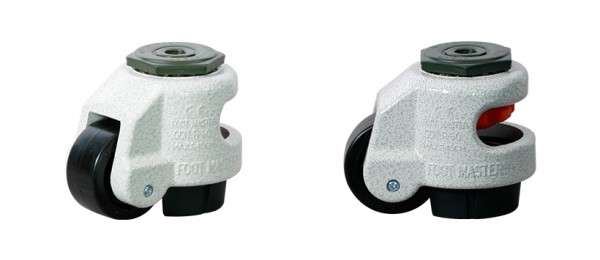

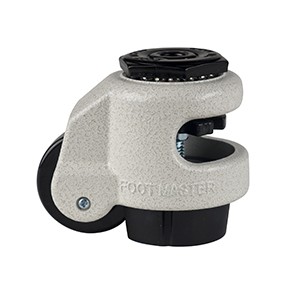

GDN-60-S-NYN
Brand / Brand:
● Model
ㆍGDN-60-S-NYN
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, height adjustment with integrated orange handle or spanner, anti-vibration NBR pad
* Surface Treatment: Powder coating, zinc plated
* Wheel: Nylon66(Shore D70), no bearing
| Wheel Diameter | 50 mm |
| Width of Tread | 25mm |
| Hardness of Tread | 70 Shore D |
| Center Bolt | M12 x 1.75P |
| Bolt Length | 18 mm |
| Leveling Extent | 10mm |
| Offset | 38 mm |
| Overall Height | 82 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 250 kg |
| Load Capacity / 4pcs | 500 kg |
| Wheel Diameter | 1.97 “ |
| Width of Tread | 0.98 “ |
| Hardness of Tread | 70 Shore D |
| Center Bolt | M12 x 1.75P |
| Bolt Length | 0.71 “ |
| Leveling Extent | 0.39 “ |
| Offset | 1.5 “ |
| Overall Height | 3.22 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 551 lbs |
| Load Capacity / 4pcs | 1,102 lbs |
