GDS-65-ASF/BSF/ARF/BRF-EUS
Brand / Brand:

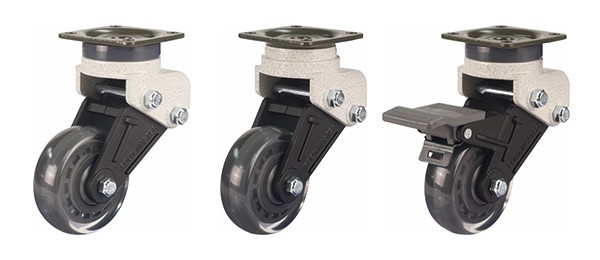

● Model
ㆍGDS-65-ASF-EUS(Swivel)
ㆍGDS-65-ARF-EUS(Rigid)
ㆍGDS-65-BSF-EUS(Swivel with brake)
ㆍGDS-65-BRF-EUS(Rigid with brake)
● Spring hardness
ㆍ65º
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, fine shock absorption function with special rubber(A65), smooth-operating top brake system, special wheel axle for reinforce of smooth rolling
* Surface Treatment: Powder coating, zinc plated
* Wheel: High elasticity polyurethane(Shore A80), PC core, one ball bearings
| Wheel Diameter | 64 mm |
| Width of Tread | 23 mm |
| Hardness of Tread | 80 Shore A |

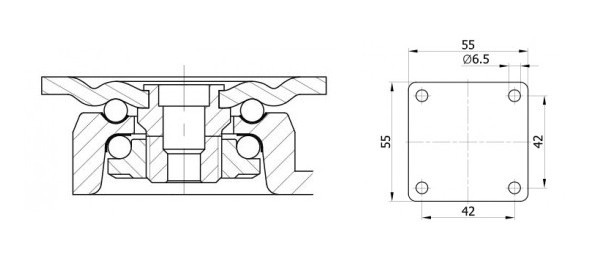

| Size of Plate | 55 x 55 mm |
| Plate Hole Centers | 42 x 42 mm |
| Plate Hole | 6.5 mm |
| Shock Absorbing Extent | 10mm |
| Offset | 30 ~ 36 mm |
| Overall Height | 115-10 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 50 kg |
| Load Capacity / 4pcs | 150 kg |
| Wheel Diameter | 2.52 “ |
| Width of Tread | 0.9 “ |
| Hardness of Trea | 80 Shore A |
| Size of Plate | 2.17 x 2.17 “ |
| Plate Hole Centers | 1.65 x 1.65 “ |
| Plate Hole | 0.26 “ |
| Shock Absorbing Extent | 0.39 “ |
| Offset | 1.18 x 1.42 “ |
| Overall Height | 4.53-0.39 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 110 lbs |
| Load Capacity / 4pcs | 330 lbs |
