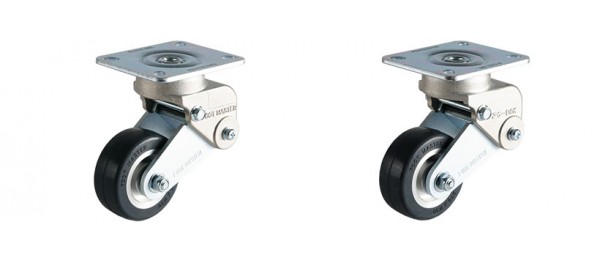

GDS-75-ASF/ARF-FRD
Brand / Brand:
● Model
ㆍGDS-75-ASF-FRD-65º(Swivel)
ㆍGDS-75-ARF-FRD-65º(Rigid)

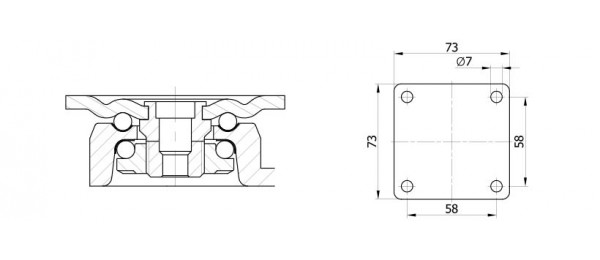

* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, aluminum frame, minute shock absorption function with heat-resistant special rubber, special wheel axle for reinforce of smooth rolling, maximum up to 250℃
* Surface Treatment: Nickel plating, zinc plated
* Wheel: Fluoro rubber(Shore A85), aluminum core, two ball bearings
| Wheel Diameter | 75 mm |
| Width of Tread | 30 mm |
| Hardness of Tread | 85 Shore A |
| Size of Plate | 100 x 85 mm |
| Plate Hole Centers | 80 x 60 or 76 x 55mm |
| Plate Hole | 9mm |
| Shock Absorbing Extent | 15 mm |
| Offset | 35 ~ 39 mm |
| Overall Height | 130 mm |
| Temperature | -10 ~ +250 ℃ |
| Load Capacity / 1pcs | 60 kg |
| Load Capacity / 4pcs | 180 kg |
| Wheel Diameter | 2.95 “ |
| Width of Tread | 1.18 “ |
| Hardness of Tread | 85 Shore A |
| Size of Plate | 3.94 x 3.35 “ |
| Plate Hole Centers | 3.15 x 2.36 or 2.99 x 2.17 “ |
| Plate Hole | 0.35 “ |
| Shock Absorbing Extent | 0.59 “ |
| Offset | 1.34 x 1.53 “ |
| Overall Height | 5.11 “ |
| Temperature | +14 ~ +482 ℉ |
| Load Capacity / 1pcs | 132 lbs |
| Load Capacity / 4pcs | 397 lbs |
