Anti-static
-
- Model: GDS-75-ASS/ARS-LUD-WEU

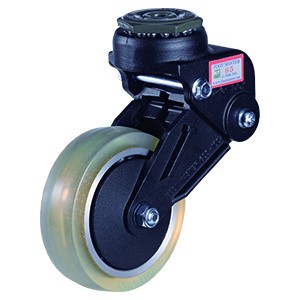

Black frame
-
- Model: GDS-75-ASS/ARS-LUD-FBL
www.cokhitieuchuan.com
MAKING IT EASIER
GDS-75-ASS/ARS-LUD
Brand / Brand:
● Model
ㆍGDS-75-ASS-LUD(Swivel)
ㆍGDS-75-ARS-LUD(Rigid)
● Spring hardness selectable
ㆍ(65º or 75º) / (Standard 65º)
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, fine shock absorption function with special rubber(select between A65 and A75), smooth-operating top brake system, special wheel axle for reinforce of smooth rolling
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore A90), aluminum core, two ball bearings
| Wheel Diameter | 75 mm |
| Width of Tread | 30 mm |
| Hardness of Tread | 90 Shore A |
| Center Bolt | M12 x 1.75P |
| Bolt Length | 18 mm |
| Shock Absorbing Extent | 15 mm |
| Offset | 35 ~ 39 mm |
| Overall Height | 130 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 90 kg |
| Load Capacity / 4pcs | 270 kg |
| Wheel Diameter | 2.95 “ |
| Width of Tread | 1.18 “ |
| Hardness of Tread | 90 Shore A |
| Center Bolt | M12 x 1.75P |
| Bolt Length | 0.71 “ |
| Shock Absorbing Extent | 0.59 “ |
| Offset | 1.38 x 1.53 “ |
| Overall Height | 5.11 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 198 lbs |
| Load Capacity / 4pcs | 595 lbs |
