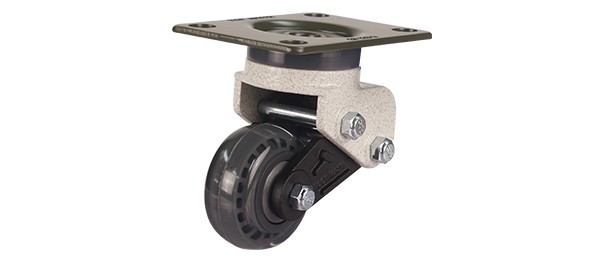

GDSA-50-PUS-ASF-EUS
Brand / Brand:
● Model
ㆍGDSA-50-ASF-EUS-PUS(Swivel)
● Spring hardness
ㆍ65º
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, fine shock absorption function with special rubber(A65), smooth-operating top brake system, special wheel axle for reinforce of smooth rolling, AGV/AMR Dedicated Shock Absorbing Casters
* Surface Treatment: Powder coating, zinc plated
* Wheel: High elasticity polyurethane(Shore A80), PC core, one ball bearings
| Wheel Diameter | 50 mm |
| Width of Tread | 23 mm |
| Hardness of Tread | 80 Shore A |

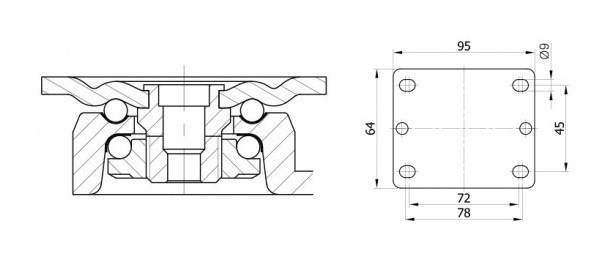

| Size of Plate | 95 x 64 mm |
| Plate Hole Centers | 78 x 45 or 72 x 45 mm |
| Plate Hole | 9mm |
| Shock Absorbing Extent | 7 mm |
| Offset | 23 ~ 25 mm |
| Overall Height | 87-7 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 30 kg |
| Load Capacity / 4pcs | 90 kg |
| Wheel Diameter | 1.97 “ |
| Width of Tread | 0.9 “ |
| Hardness of Trea | 80 Shore A |
| Size of Plate | 3.74 x 2.52 “ |
| Plate Hole Centers | 3.07 x 1.77 or 2.83 x 1.77 “ |
| Plate Hole | 0.35 “ |
| Shock Absorbing Extent | 0.28 “ |
| Offset | 0.91 x 0.98 “ |
| Overall Height | 3.43-0.28 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 66 lbs |
| Load Capacity / 4pcs | 198 lbs |
