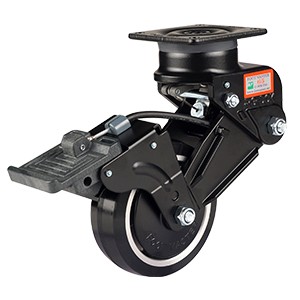

Anti-static
-
- Model: GDSB-125-ASF/BSF/ARF/BRF-LUD-WEU

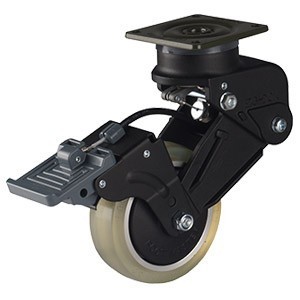

Black frame
-
- Model: GDSB-125-ASF/BSF/ARF/BRF-LUD-FBL
www.cokhitieuchuan.com
MAKING IT EASIER
GDSB-125-ASF/BSF/ARF/BRF-LUD
Brand / Brand:

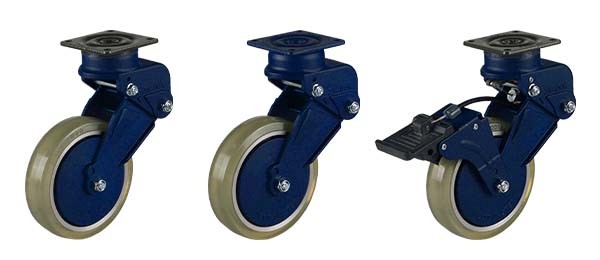

● Model
ㆍGDSB-125-ASF-LUD(Swivel)
ㆍGDSB-125-ARF-LUD(Rigid)
ㆍGDSB-125-BSF-LUD(Swivel with brake)
ㆍGDSB-125-BRF-LUD(Rigid with brake)
● Spring hardness selectable
ㆍ(65º or 75º) / (Standard 65º)

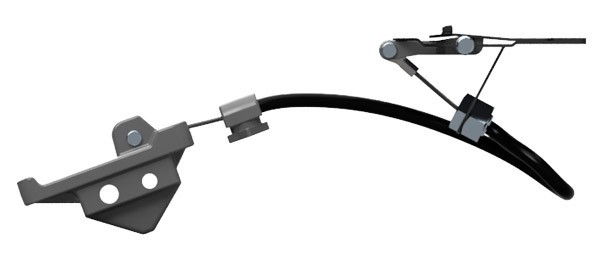

● Total Lock Brake system
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, texture blue-colored aluminum frame, fine shock absorption function with special rubber(select between A65 and A75), smooth-operating total-lock top brake system, special wheel axle for reinforce of smooth rolling
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore A90), aluminum core, two ball bearings
| Wheel Diameter | 125mm |
| Width of Tread | 30 mm |
| Hardness of Tread | 90 Shore A |

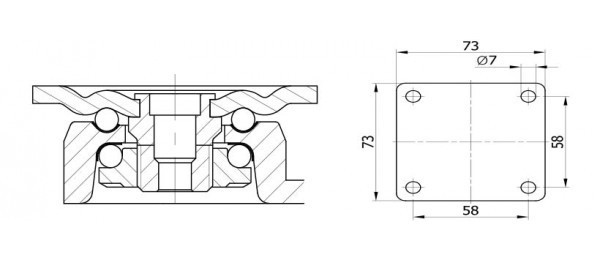

| Size of Plate | 73 x 73 mm |
| Plate Hole Centers | 58 x 58 mm |
| Plate Hole | 7 mm |
| Shock Absorbing Extent | 20 mm |
| Offset | 45 ~ 57 mm |
| Overall Height | 197-20 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 100 kg |
| Load Capacity / 4pcs | 300 kg |
| Wheel Diameter | 4.91 “ |
| Width of Tread | 1.18 “ |
| Hardness of Tread | 90 Shore A |
| Size of Plate | 2.87 x 2.87 “ |
| Plate Hole Centers | 2.28 x 2.28 “ |
| Plate Hole | 0.28 “ |
| Shock Absorbing Extent | 0.79 “ |
| Offset | 1.77 x 2.15 “ |
| Overall Height | 6.93-0.79 ” |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 220 lbs |
| Load Capacity / 4pcs | 661 lbs |
