GH-100-ASF/ARF/BSF-NYD
Brand / Brand:

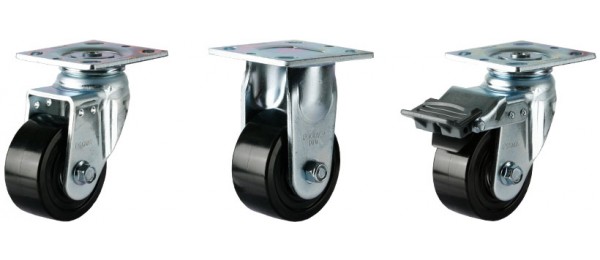

● Model
ㆍGH-100-ASF-NYD(Swivel)
ㆍGH-100-ARF-NYD(Rigid)
ㆍGH-100-BSF-NYD(Swivel with brake)

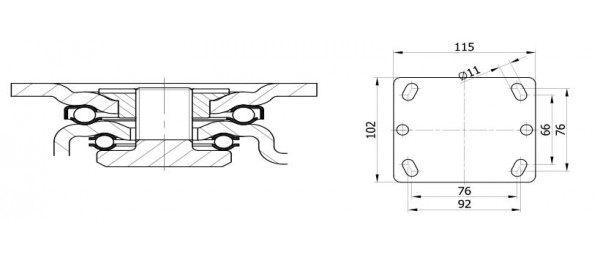

* Brackets: Pressed steel plate, double ball bearing with four hardened bearing seats in the swivel head which is advantageous to rapid swiveling and excellent durability, strong integrated pressed steel frame, smooth-operating top brake system, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: High-Performance Nylon(Shore D70), two ball bearings
| Wheel Diameter | 100mm |
| Width of Tread | 48 mm |
| Hardness of Tread | 70 Shore D |
| Size of Plate | 115 x 102 mm |
| Plate Hole Centers | 92 x 66 or 76 x 76 mm |
| Plate Hole | 11 mm |
| Offset | 50 mm |
| Overall Height | 156 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 600 kg |
| Load Capacity / 4pcs | 1,800 kg |
| Wheel Diameter | 3.93 “ |
| Width of Tread | 1.89 “ |
| Hardness of Tread | 70 Shore D |
| Size of Plate | 4.52 x 4.01 “ |
| Plate Hole Centers | 3.62 x 2.59 or 2.99 x 2.99 “ |
| Plate Hole | 0.43 “ |
| Offset | 1.97 “ |
| Overall Height | 6.13 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 1,322 lbs |
| Load Capacity / 4pcs | 3,968 lbs |
