GH-130-ASF/ARF/BSF-MUD
Brand / Brand:

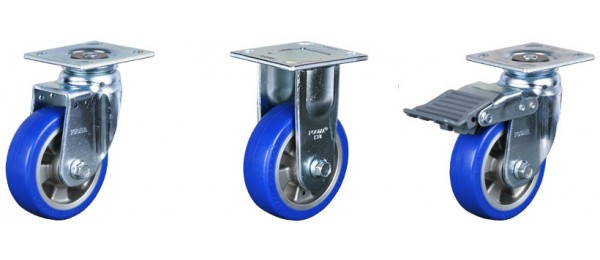

● Model
ㆍGH-130-ASF-MUD(Swivel)
ㆍGH-130-ARF-MUD(Rigid)
ㆍGH-130-BSF-MUD(Swivel with brake)
* Brackets: Pressed steel plate, double ball bearing with four hardened bearing seats in the swivel head which is advantageous to rapid swiveling and excellent durability, strong integrated pressed steel frame, smooth-operating top brake system, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: Cast polyurethane(Shore A95), aluminum core, two ball bearings
| Wheel Diameter | 130 mm |
| Width of Tread | 40mm |
| Hardness of Tread | 95 Shore A |

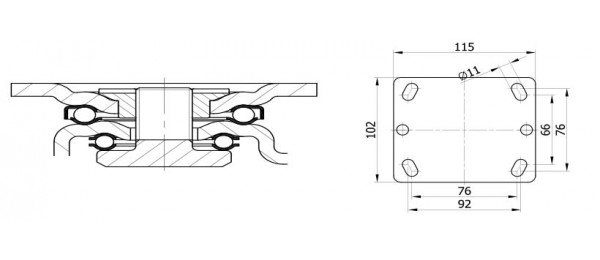

| Size of Plate | 115 x 102 mm |
| Plate Hole Centers | 92 x 66 or 76 x 76 mm |
| Plate Hole | 11 mm |
| Offset | 50mm |
| Overall Height | 186 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 320 kg |
| Load Capacity / 4pcs | 960 kg |
| Wheel Diameter | 5.11 “ |
| Width of Tread | 1.57 “ |
| Hardness of Tread | 95 Shore A |
| Size of Plate | 4.52 x 4.01 “ |
| Plate Hole Centers | 3.62 x 2.59 or 2.99 x 2.99 “ |
| Plate Hole | 0.43 “ |
| Offset | 1.97 “ |
| Overall Height | 7.32 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 705 lbs |
| Load Capacity / 4pcs | 2,116 lbs |
