GL-125-ASS/BSS-HRD
Brand / Brand:

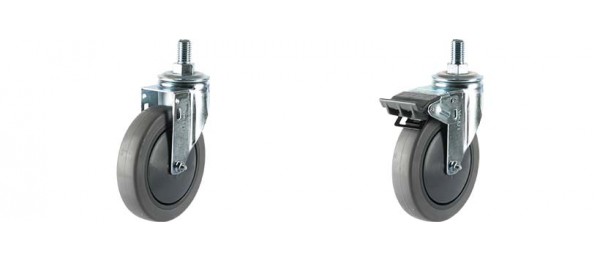

● Model
ㆍGL-125-ASS-HRD(Swivel)
ㆍGL-125-BSS-HRD(Swivel with brake)
* Brackets: Forged steel bolt, strong integrated pressed steel frame, smooth-operating top brake system, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: Injected rubber(Shore A85), PP core, two ball bearings
| Wheel Diameter | 125mm |
| Width of Tread | 30 mm |
| Hardness of Tread | 85 Shore A |

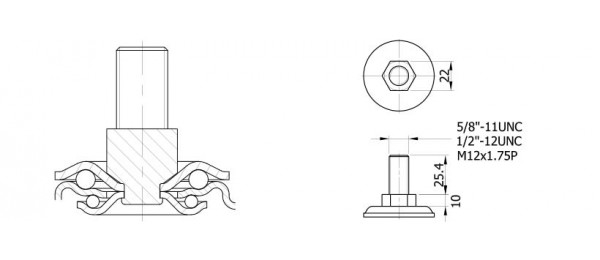

| Center Bolt | 5/8"-11UNC or M12x1.75P or 1/2"-12UNC |
| Bolt Length | 25mm |
| Offset | 35 mm |
| Overall Height | 157 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 100 kg |
| Load Capacity / 4pcs | 300 kg |
| Wheel Diameter | 4.91 “ |
| Width of Tread | 1.18 “ |
| Hardness of Tread | 85 Shore A |
| Center Bolt | 5/8"-11UNC or M12x1.75P or 1/2"-12UNC |
| Bolt Length | 0.98 “ |
| Offset | 1.37 “ |
| Overall Height | 6.18 “ |
| Temperature | 14 ~ 194 ℉ |
| Load Capacity / 1pcs | 220 lbs |
| Load Capacity / 4pcs | 660 lbs |
