GL-50-ASF/ARF/BSF-HRN
Brand / Brand:

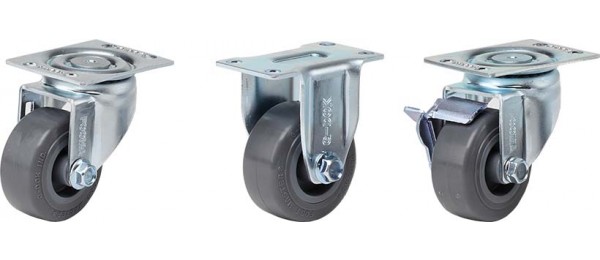

● Model
ㆍGL-50-ASF-HRN(Swivel)
ㆍGL-50-ARF-HRN(Rigid)
ㆍGL-50-BSF-HRN(Swivel with brake)
* Brackets: Pressed steel plate, strong integrated pressed steel frame, smooth-operating side brake system, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: Injected rubber(Shore A85), PP core, no bearing
Wheel Diameter | 50 mm |
Width of Tread | 24 mm |
Hardness of Tread | 85 Shore A |

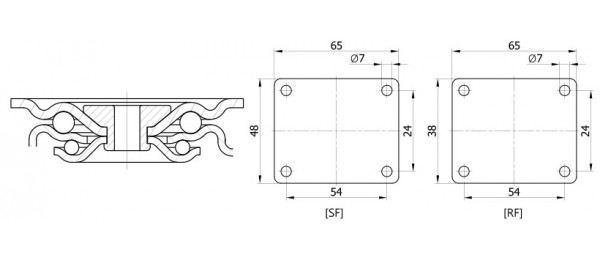

Size of Plate | [SF] 65 x 48 , [RF] 65 x 38 mm |
Plate Hole Centers | 54 x 24 mm |
Plate Hole | 7 mm |
Offset | 22 mm |
Overall Height | 70mm |
Temperature | -10 ~ 90 ℃ |
Load Capacity / 1pcs | 40 kg |
Load Capacity / 4pcs | 120 kg |
Wheel Diameter | 1.97 “ |
Width of Tread | 0.94 “ |
Hardness of Tread | 85 Shore A |
Size of Plate | [SF] 2.55 x 1.88 [RF] 2.56 x 1.49 “ |
Plate Hole Centers | 2.13 x 0.94 “ |
Plate Hole | 0.28 “ |
Offset | 0.87 “ |
Overall Height | 2.76 “ |
Temperature | +14 ~ +194 ℉ |
Load Capacity / 1pcs | 88 lbs |
Load Capacity / 4pcs | 264 lbs |
