GL-65-ASS/BSS-HRN
Brand / Brand:

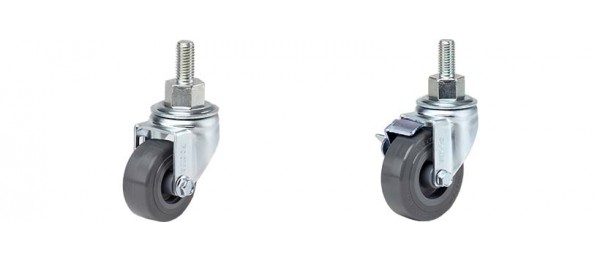

● Model
ㆍGL-65-ASS-HRN(Swivel)
ㆍGL-65-BSS-HRN(Swivel with brake)
* Brackets: Forged steel bolt, strong integrated pressed steel frame, smooth-operating side brake system, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: Injected rubber(Shore A85), PP core, no bearing
| Wheel Diameter | 64 mm |
| Width of Tread | 24 mm |
| Hardness of Tread | 85 Shore A |

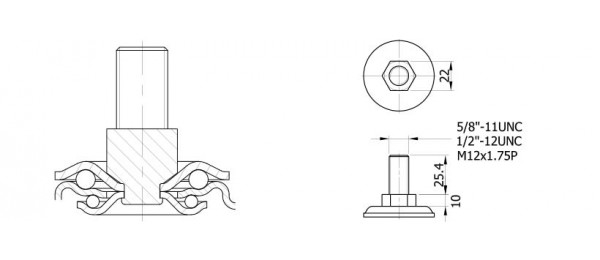

| Center Bolt | 1/2 “-12UNC |
| Bolt Length | 18 mm |
| Offset | 22 mm |
| Overall Height | 82 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 50 kg |
| Load Capacity / 4pcs | 150 kg |
| Wheel Diameter | 2.51 “ |
| Width of Tread | 0.94 “ |
| Hardness of Tread | 85 Shore A |
| Center Bolt | 1/2″-12UNC |
| Bolt Length | 0.71 “ |
| Offset | 0.87 “ |
| Overall Height | 3.22 “ |
| Temperature | 14 ~ 194 ℉ |
| Load Capacity / 1pcs | 110 lbs |
| Load Capacity / 4pcs | 330 lbs |
