GL-75-ASF/ARF/BSF-HRN
Brand / Brand:

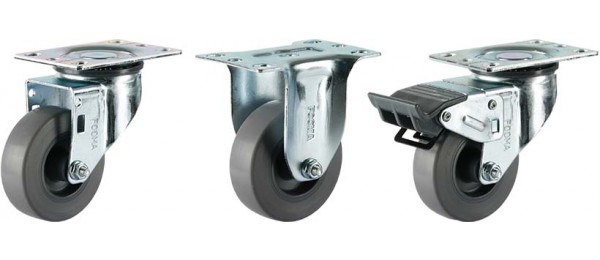

● Model
ㆍGL-75-ASF-HRN(Swivel)
ㆍGL-75-ARF-HRN(Rigid)
ㆍGL-75-BSF-HRN(Swivel with brake)
* Brackets: Pressed steel plate, strong integrated pressed steel frame, dust protection cover in the swivel head, smooth-operating top brake system, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: Injected rubber(Shore A85), PP core, no bearing
| Wheel Diameter | 75 mm |
| Width of Tread | 25mm |
| Hardness of Tread | 85 Shore A |

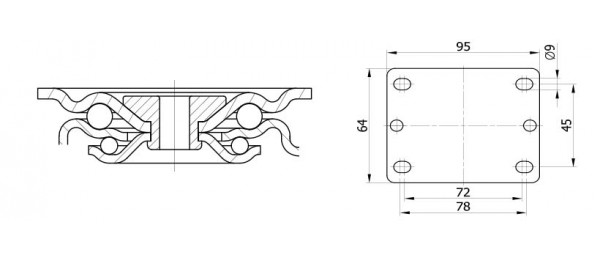

| Size of Plate | 95 x 64 mm |
| Plate Hole Centers | 78 x 45 or 72 x 45 mm |
| Plate Hole | 9mm |
| Offset | 40mm |
| Overall Height | 105 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 65 kg |
| Load Capacity / 4pcs | 195 kg |
| Wheel Diameter | 2.95 “ |
| Width of Tread | 0.98 “ |
| Hardness of Tread | 85 Shore A |
| Size of Plate | 3.74 x 2.52 “ |
| Plate Hole Centers | 3.07 x 1.77 or 2.83 x 1.77 “ |
| Plate Hole | 0.35 “ |
| Offset | 1.57 “ |
| Overall Height | 4.13 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 143 lbs |
| Load Capacity / 4pcs | 430 lbs |
