GL-75-ASS/BSS-EUS
Brand / Brand:

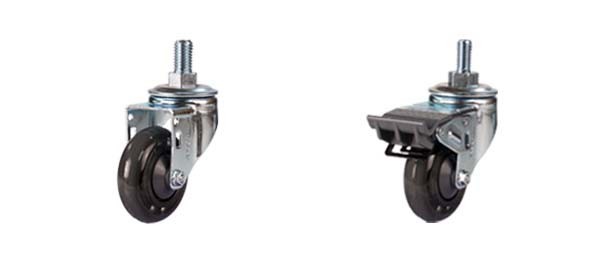

● Model
ㆍGL-75-ASS-EUS(Swivel)
ㆍGL-75-BSS-EUS(Swivel with brake)
* Brackets: Forged steel bolt, strong integrated pressed steel frame, smooth-operating top brake system, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: High elasticity polyurethane(Shore A80), PC core, one ball bearings
| Wheel Diameter | 75 mm |
| Width of Tread | 25mm |
| Hardness of Tread | 80 Shore A |

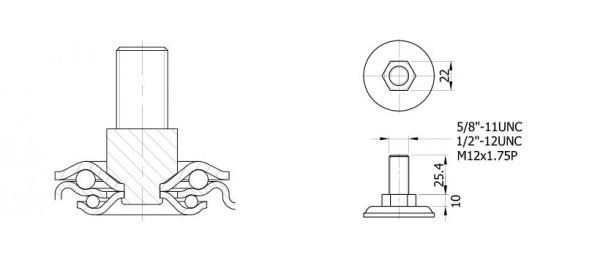

| Center Bolt | 5/8"-11UNC or M12x1.75P or 1/2"-12UNC |
| Bolt Length | 25mm |
| Offset | 40mm |
| Overall Height | 105 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 65 kg |
| Load Capacity / 4pcs | 195 kg |
| Wheel Diameter | 2.95 “ |
| Width of Tread | 0.98 “ |
| Hardness of Tread | 80 Shore A |
| Center Bolt | 5/8"-11UNC or M12x1.75P or 1/2"-12UNC |
| Bolt Length | 0.98 “ |
| Offset | 1.57 “ |
| Overall Height | 4.13 “ |
| Temperature | 14 ~ 194 ℉ |
| Load Capacity / 1pcs | 143 lbs |
| Load Capacity / 4pcs | 430 lbs |
