GLH-60-PPHS-ASF/BSF-NYQ
Brand / Brand:

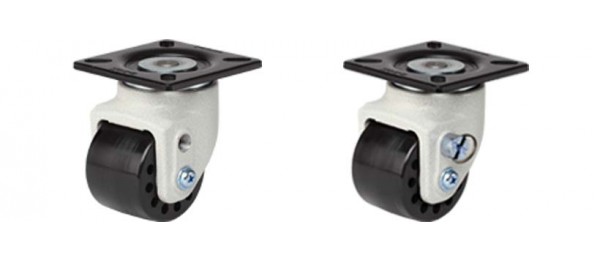

● Model Name
ㆍGLH-60-ASF-NYQ-PPHS(Swivel)
ㆍGLH-60-BSF-NYQ-PPHS(Swivel with brake)
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, wheel brake system of on and off side pin, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: Nylon66(Shore D70), four ball bearings
| Wheel Diameter | 60 mm |
| Width of Tread | 55 mm |
| Hardness of Tread | 70 Shore D |

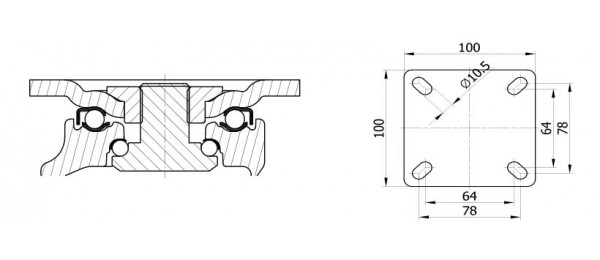

| Size of Plate | 100 x 100 mm |
| Plate Hole Centers | 78 x 78 or 64 x 64mm |
| Plate Hole | 10.5 mm |
| Offset | 25mm |
| Overall Height | 98 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 600 kg |
| Load Capacity / 4pcs | 1,800 kg |
| Wheel Diameter | 2.36 “ |
| Width of Tread | 2.17 “ |
| Hardness of Tread | 70 Shore D |
| Size of Plate | 3.94 x 3.94 “ |
| Plate Hole Centers | 3.07 x 3.07 or 2.52 x 2.52″ |
| Plate Hole | 0.41 “ |
| Offset | 0.98 “ |
| Overall Height | 3.86 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 1,332 lbs |
| Load Capacity / 4pcs | 3,968 lbs |
