GLH-75-ASF/BSF-NYD
Brand / Brand:

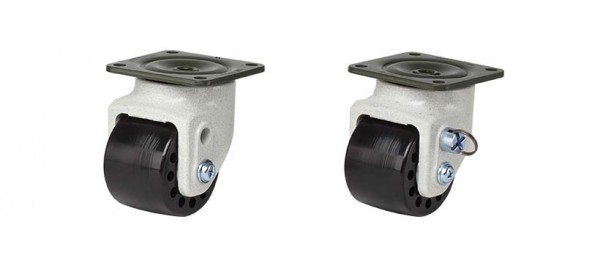

● Model
ㆍGLH-75-ASF-NYD(Swivel)
ㆍGLH-75-BSF-NYD(Swivel with brake)

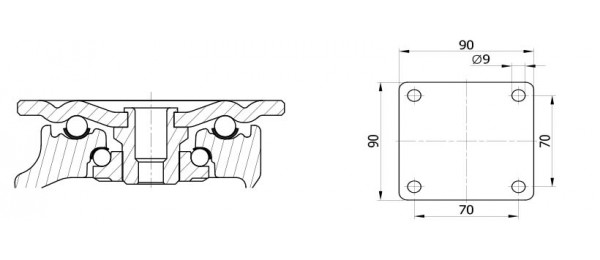

* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, wheel brake system of on and off side pin, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: Nylon66(Shore D70), two ball bearings
| Wheel Diameter | 75 mm |
| Width of Tread | 55 mm |
| Hardness of Tread | 70 Shore D |
| Size of Plate | 90 x 90 mm |
| Plate Hole Centers | 70 x 70 mm |
| Plate Hole | 9mm |
| Offset | 25mm |
| Overall Height | 107 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 700 kg |
| Load Capacity / 4pcs | 2,100 kg |
| Wheel Diameter | 2.95 “ |
| Width of Tread | 2.17 “ |
| Hardness of Tread | 70 Shore D |
| Size of Plate | 3.54 x 3.54 “ |
| Plate Hole Centers | 2.76 x 2.76 “ |
| Plate Hole | 0.35 “ |
| Offset | 0.98 “ |
| Overall Height | 4.21 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 1,543 lbs |
| Load Capacity / 4pcs | 4.629 lbs |
