GSST-200W-ASF/ARF-HUD
Brand / Brand:

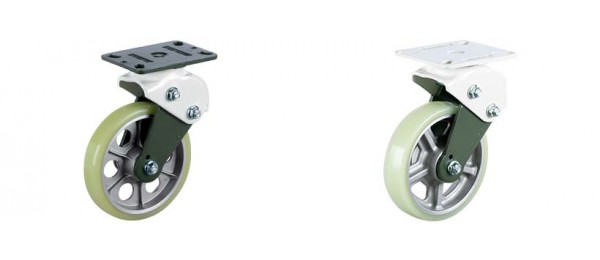

● Model
ㆍGSST-200W-ASF-HUD(Swivel)
ㆍGSST-200W-ARF-HUD(Rigid)
● Standard 75º
Towing by power vehicle(20km/h)
* Brackets: Forged steel plate, ball bearing with hardened bearing seats and thrust bearing in the swivel head, rugged pressed steel frame with ivory color after welding, fine shock absorption function with special rubber, towing by power vehicle, strong top brake system, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore A95), aluminum core, two ball bearings
| Wheel Diameter | 200 mm |
| Width of Tread | 48 mm |
| Hardness of Tread | 95 Shore A |

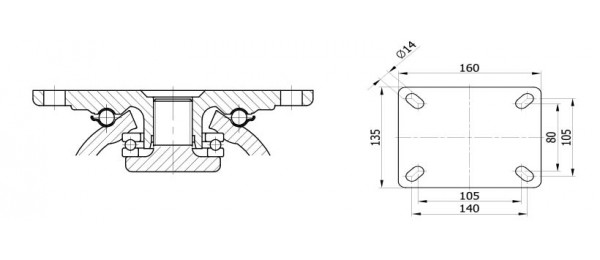

| Size of Plate | 160 x 135 mm |
| Plate Hole Centers | 140 x 105 or 105 x 80 mm |
| Plate Hole | 14mm |
| Shock Absorbing Extent | 30 mm |
| Offset | 50 ~ 68 mm |
| Overall Height | 279 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 500 kg |
| Load Capacity / 4pcs | 1,500 kg |
| Wheel Diameter | 7.86 “ |
| Width of Tread | 1.89 “ |
| Hardness of Tread | 95 Shore A |
| Size of Plate | 6.29 x 5.31 “ |
| Plate Hole Centers | 5.50 x 4.13 or 4.13 x 3.14 “ |
| Plate Hole | 0.55 “ |
| Shock Absorbing Extent | 1.18 “ |
| Offset | 1.97 x 2.67 “ |
| Overall Height | 10.96 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 1,102 lbs |
| Load Capacity / 4pcs | 3,307 lbs |
