GXT-100-ASF/ARF/BSF-NYD
Brand / Brand:

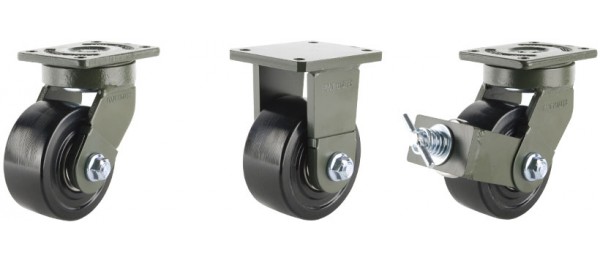

● Model
ㆍGXT-100-ASF-NYD(Swivel)
ㆍGXT-100-ARF-NYD(Rigid)
ㆍGXT-100-BSF-NYD(Swivel with brake)

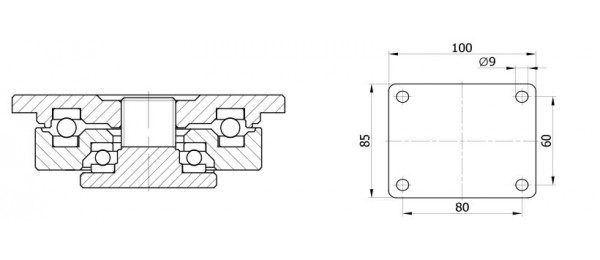

* Brackets: Forged steel plate, double thrust bearing in the swivel head to optimize heavy load, strong welded steel frame, hand-operated wheel brake system, special wheel axle for reinforce of smooth rolling,
* Surface Treatment: Powder coating, zinc plated
* Wheel: High-Performance Nylon(Shore D70), two ball bearings
Wheel Diameter | 100mm |
Width of Tread | 48 mm |
Hardness of Tread | 70 Shore D |
Size of Plate | 100 x 85 mm |
Plate Hole Centers | 80 x 60 mm |
Plate Hole | 9mm |
Offset | 40mm |
Overall Heigh | 140 mm |
Temperature | -10 ~ +90 ℃ |
Load Capacity / 1pcs | 900 kg |
Load Capacity / 4pcs | 2,700 kg |
※The allowable load capacity of NYD is decreased when continuously over 30 minutes. (Caution – Not recommended for AGV casters / Idle time extended to prevent thermal deformation – KS B ISO 22883)
Wheel Diameter | 3.93 “ |
Width of Tread | 1.89 “ |
Hardness of Tread | 70 Shore D |
Size of Plate | 3.93 x 3.34 “ |
Plate Hole Centers | 3.14 x 2.36 “ |
Plate Hole | 0.35 “ |
Offset | 1.57 “ |
Overall Heigh | 5.50 “ |
Temperature | +14 ~ +194 ℉ |
Load Capacity / 1pcs | 1,984 lbs |
Load Capacity / 4pcs | 5,953 lbs |
※The allowable load capacity of NYD is decreased when continuously over 30 minutes. (Caution – Not recommended for AGV casters / Idle time extended to prevent thermal deformation – KS B ISO 22883)
