GXT-125-ASF/ARF/BSF-NYD
Brand / Brand:

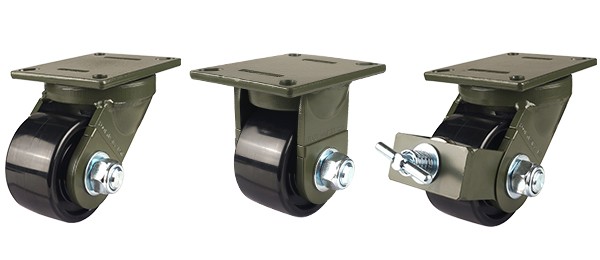

● Model
ㆍGXT-125-ASF-NYD(Swivel)
ㆍGXT-125-ARF-NYD(Rigid)
ㆍGXT-125-BSF-NYD(Swivel with brake)

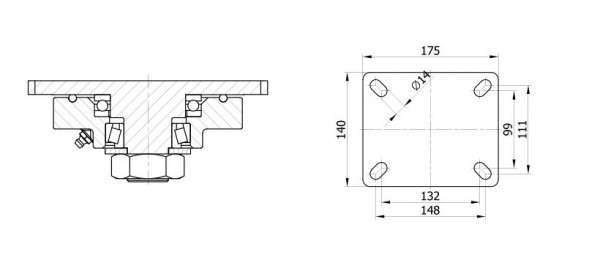

* Brackets: Forged steel plate, thrust bearing and taper roller bearing in the swivel head to optimize heavy load, strong welded steel frame, hand-operated wheel brake system, special wheel axle for reinforce of smooth rolling,
* Surface Treatment: Powder coating, zinc plated
* Wheel: High-Performance Nylon(Shore D70), two ball bearings
Wheel Diameter | 125mm |
Width of Tread | 70mm |
Hardness of Tread | 70 Shore D |
Size of Plate | 175 x 140 mm |
Plate Hole Centers | 148 x 111 or 132 x 99 mm |
Plate Hole | 14mm |
Offset | 77.5mm |
Overall Height | 170 mm |
Temperature | -10 ~ +90 ℃ |
Load Capacity / 1pcs | 1,500 kg |
Load Capacity / 4pcs | 4,500 kg |
※The allowable load capacity of NYD is decreased when continuously over 30 minutes. (Caution – Not recommended for AGV casters / Idle time extended to prevent thermal deformation – KS B ISO 22883)
Wheel Diameter | 4.91 “ |
Width of Tread | 2.75 “ |
Hardness of Tread | 70 Shore D |
Size of Plate | 6.88 x 5.50 “ |
Plate Hole Centers | 5.82 x 4.36 or 5.19 x 3.89″ |
Plate Hole | 0.55 “ |
Offset | 3.05 “ |
Overall Height | 6.68 “ |
Temperature | +14 ~ +194 ℉ |
Load Capacity / 1pcs | 3,307 lbs |
Load Capacity / pcs | 9,921 lbs |
※The allowable load capacity of NYD is decreased when continuously over 30 minutes. (Caution – Not recommended for AGV casters / Idle time extended to prevent thermal deformation – KS B ISO 22883)
