GXT-150-ASF/ARF/BSF-NYD
Brand / Brand:

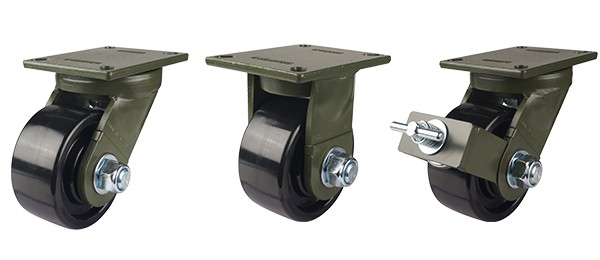

● Model
ㆍGXT-150-ASF-NYD(Swivel)
ㆍGXT-150-ARF-NYD(Rigid)
ㆍGXT-150-BSF-NYD(Swivel with brake)
* Brackets: Forged steel plate, thrust bearing and taper roller bearing in the swivel head to optimize heavy load, strong welded steel frame, hand-operated wheel brake system, special wheel axle for reinforce of smooth rolling,
* Surface Treatment: Powder coating, zinc plated
* Wheel: High-Performance Nylon(Shore D70), two ball bearings
| Wheel Diameter | 150 mm |
| Width of Tread | 70mm |
| Hardness of Tread | 70 Shore D |

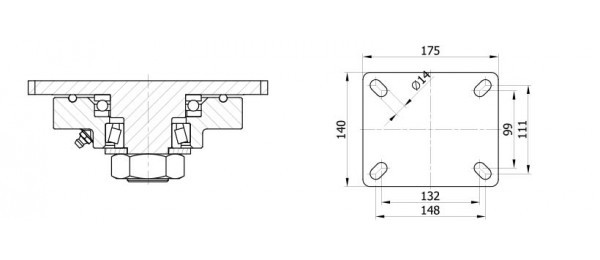

| Size of Plate | 175 x 140 mm |
| Plate Hole Centers | 148 x 111 or 132 x 99 mm |
| Plate Hole | 14mm |
| Offset | 80 mm |
| Overall Height | 200 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 2,200 kg |
| Load Capacity / 4pcs | 6,600 kg |
※The allowable load capacity of NYD is decreased when continuously over 30 minutes. (Caution – Not recommended for AGV casters / Idle time extended to prevent thermal deformation – KS B ISO 22883)
| Wheel Diameter | 5.90 “ |
| Width of Tread | 2.75 “ |
| Hardness of Tread | 70 Shore D |
| Size of Plate | 6.88 x 5.50 “ |
| Plate Hole Centers | 5.82 x 4.36 or 5.19 x 3.89″ |
| Plate Hole | 0.55 “ |
| Offset | 3.14 “ |
| Overall Height | 7.86 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 4,850 lbs |
| Load Capacity / 4pcs | 14,550 lbs |
※The allowable load capacity of NYD is decreased when continuously over 30 minutes. (Caution – Not recommended for AGV casters / Idle time extended to prevent thermal deformation – KS B ISO 22883)
