GXT-250-ASF/ARF/BSF-HUD
Brand / Brand:

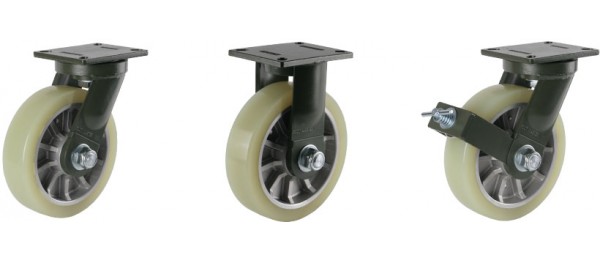

Model
● GXT-250-ASF-HUD (Swivel)
● GXT-250-ARF-HUD (Rigid)
● GXT-250-BSF-HUD (Swivel with brakes)
* Bracket: Forged steel plate, double thrust bearings at swivel end to optimize load capacity, sturdy welded steel frame, hand-operated wheel braking system, special wheel axle to enhance smooth rolling ability,
* Surface Treatment: Powder coating, zinc plated
* Wheels: Cast polyurethane (Shore D70), aluminum core, two ball bearings
| Wheel diameter | 250 mm |
| Width of the wheel | 64mm |
| Wheel stiffness | 95 Shore A |

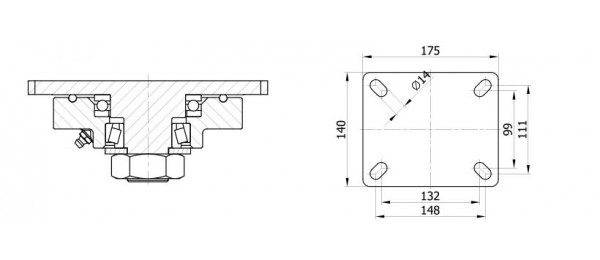

| Wheel Face Size | 175 x 140 mm |
| Wheel hole center | 148 x 111 or 132 x 99 mm |
| Wheel hole | 14mm |
| Balance | 75mm |
| Overall height | 310 mm |
| Temperature | -10 ~ +90 ℃ |
| Load / 1 piece | 2,300 kg |
| Load / 4pcs | 6,900 kg |
| Wheel diameter | 9.84 “ |
| Width of the wheel | 2.51 “ |
| Wheel stiffness | 95 Shore A |
| Wheel Face Size | 6.88 x 5.50 “ |
| Wheel hole center | 5.82 x 4.36 or 5.19 x 3.89“ |
| Wheel hole | 0.55 “ |
| Balance | 2.95 “ |
| Overall height | 12.25 “ |
| Temperature | +14 ~ +194 ℉ |
| Load / 1 piece | 5,070 lbs |
| Load / 4pcs | 15,211 lbs |
