GXT-80-ASF/ARF/BSF-MCD
Brand / Brand:

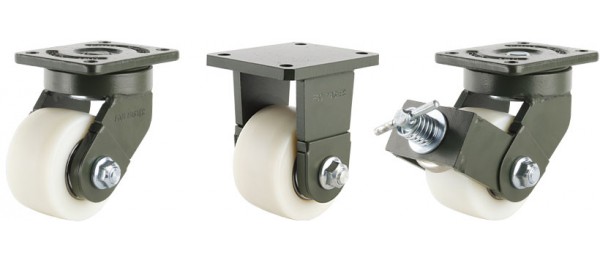

● Model
ㆍGXT-80-ASF-MCD(Swivel)
ㆍGXT-80-ARF-MCD(Rigid)
ㆍGXT-80-BSF-MCD(Swivel with brake)
* Brackets: Forged steel plate, double thrust bearing in the swivel head to optimize heavy load, strong welded steel frame, hand-operated wheel brake system, special wheel axle for reinforce of smooth rolling,
* Surface Treatment: Powder coating, zinc plated
* Wheel: MC nylon(Shore D80), two ball bearings
| Wheel Diameter | 80 mm |
| Width of Tread | 48 mm |
| Hardness of Tread | 80 Shore D |

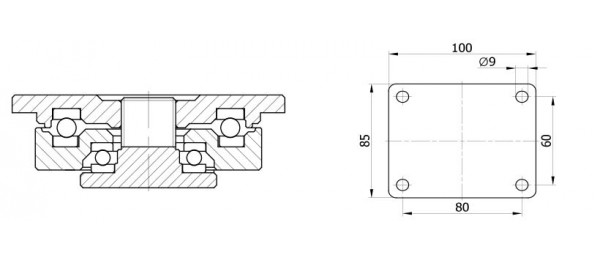

| Size of Plate | 100 x 85 mm |
| Plate Hole Centers | 80 x 60 mm |
| Plate Hole | 9mm |
| Offset | 40mm |
| Overall Height | 120 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 800 kg |
| Load Capacity / 4pcs | 2,400 kg |
| Wheel Diameter | 3.14 “ |
| Width of Tread | 1.89 “ |
| Hardness of Tread | 80 Shore D |
| Size of Plate | 3.93 x 3.34 “ |
| Plate Hole Centers | 3.14 x 2.36 “ |
| Plate Hole | 0.35 “ |
| Offset | 1.57 “ |
| Overall Height | 4.72 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 1,764 lbs |
| Load Capacity / 4pcs | 5,292 lbs |
