GXTA-100-ASF/ARF-HUQ
Brand / Brand:
● Model

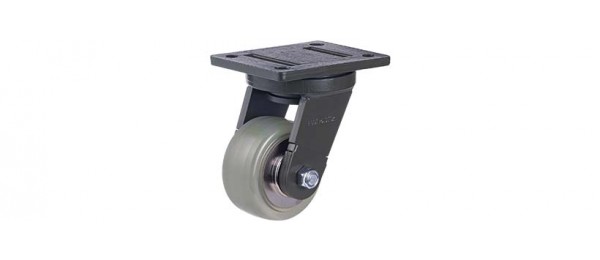

ㆍGXTA-100-ASF-HUQ(Swivel)
ㆍGXTA-100-ARF-HUQ(Rigid)
* Brackets: Forged steel plate, double ball bearing with hardened treatment in the swivel head which is clearly advantageous to excellent durability, grease nipple, strong welded frame, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore A95), steel core, Four ball bearings
| Wheel Diameter | 100mm |
| Width of Tread | 50 mm |
| Hardness of Tread | 95 Shore A |

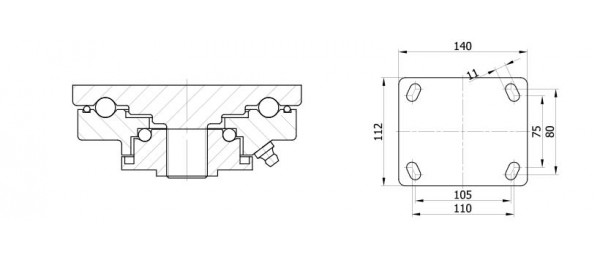

| Size of Plate | 140 x 112 mm |
| Plate Hole Centers | 110 x 75 or 105 x 80 mm |
| Plate Hole | 11 mm |
| Offset | 35 mm |
| Overall Height | 156 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 400 kg |
| Load Capacity / 4pcs | 1,200 kg |
| Wheel Diameter | 3.93 “ |
| Width of Tread | 1.97 “ |
| Hardness of Tread | 95 Shore A |
| Size of Plate | 5.50 x 4.40 “ |
| Plate Hole Centers | 4.32 x 2.95, 4.13 x 3.14 “ |
| Plate Hole | 0.43 “ |
| Offset | 1.38 “ |
| Overall Height | 6.13 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 882 lbs |
| Load Capacity / 4pcs | 2,646 lbs |
