GXTD-300-ASF/ARF -HUD
Brand / Brand:

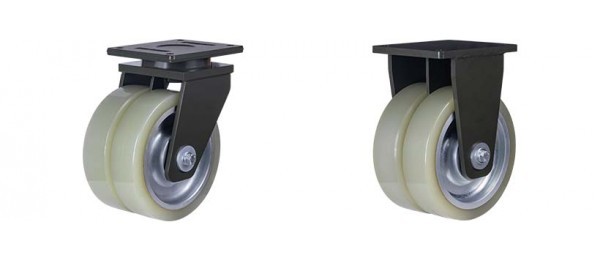

● Model
ㆍGXTD-300-ASF-HUD(Swivel)
ㆍGXTD-300-ARF-HUD(Rigid)
* Brackets: Forged steel plate, thrust bearing and taper roller bearing in the swivel head to optimize heavy load, grease nipple, strong welded steel frame, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore A95), steel core, two ball bearings
| Wheel Diameter | 300 mm |
| Width of Tread | 78 x 2 mm |
| Hardness of Tread | 95 Shore A |

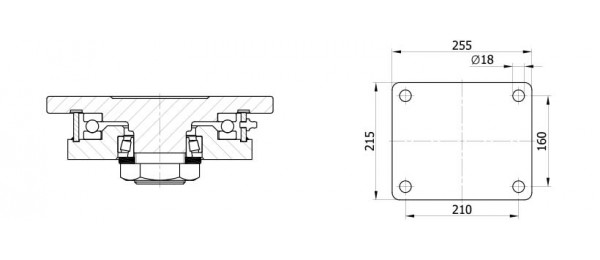

| Size of Plate | 255 x 215 mm |
| Plate Hole Centers | 210 x 160 mm |
| Plate Hole | 18 mm |
| Offset | 80 mm |
| Overall Heigh | 390 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 5,200 kg |
| Load Capacity / 4pcs | 15,600 kg |
| Wheel Diameter | 11.79 “ |
| Width of Tread | 3.07 x 2 “ |
| Hardness of Tread | 95 Shore A |
| Size of Plate | 10.02 x 8.45 “ |
| Plate Hole Centers | 8.25 x 6.29 “ |
| Plate Hole | 0.71 “ |
| Offset | 3.14 “ |
| Overall Heigh | 15.33 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 11,464 lbs |
| Load Capacity / 4pcs | 34,392 lbs |
