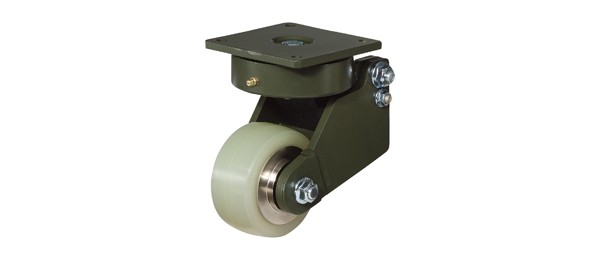

GXTS-100-ASF-HUQ
Brand / Brand:
● Model
ㆍGXTS-100-ASF-HUQ(Swivel)
* Brackets: Steel plate, double thrust bearing in the swivel head to optimize heavy load, grease nipple, strong welded frame, minute shock absorption function and constant contact function to the floor with special rubber, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore A95), steel core, Four ball bearings
| Wheel Diameter | 100mm |
| Width of Tread | 50 mm |
| Hardness of Tread | 95 Shore A |

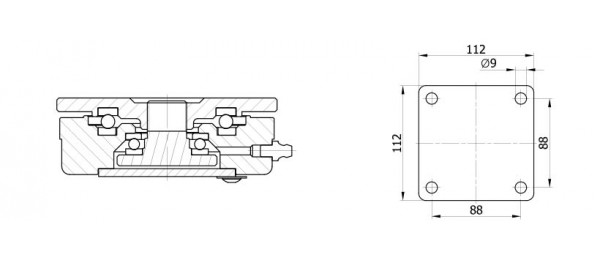

| Size of Plate | 112 x 112 mm |
| Plate Hole Centers | 88 x 88 mm |
| Plate Hole | 9 mm |
| Shock Absorbing Extent | 14mm |
| Offset | 35 ~ 39 mm |
| Overall Height | 169 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 400 kg |
| Load Capacity / 4pcs | 1,200 kg |
| Wheel Diameter | 3.93 “ |
| Width of Tread | 1.97 “ |
| Hardness of Tread | 95 Shore A |
| Size of Plate | 4.40 x 4.40 “ |
| Plate Hole Centers | 3.45 x 3.45 “ |
| Plate Hole | 0.35 “ |
| Shock Absorbing Extent | 0.55 “ |
| Offset | 1.38 ~ 1.53 “ |
| Overall Height | 6.65 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 882 lbs |
| Load Capacity / 4pcs | 2,646 |
