GXTT-125-ASF/ARF/BSF/BRF-MCD
Brand / Brand:

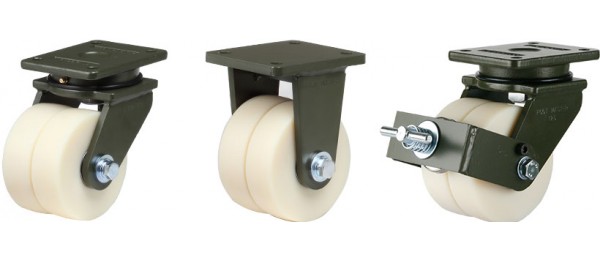

● Model
ㆍGXTT-125-ASF-MCD(Swivel)
ㆍGXTT-125-ARF-MCD(Rigid)
ㆍGXTT-125-BSF-MCD(Swivel with brake)
ㆍGXTT-125-BRF-MCD(Rigid with brake)
* Brackets: Forged steel plate, thrust bearing and taper roller bearing in the swivel head to optimize heavy load, grease nipple, strong welded steel frame, hand-operated wheel brake system, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: MC nylon(Shore D80), two ball bearings
| Wheel Diameter | 125mm |
| Width of Tread | 40 x 2 mm |
| Hardness of Tread | 80 Shore D |

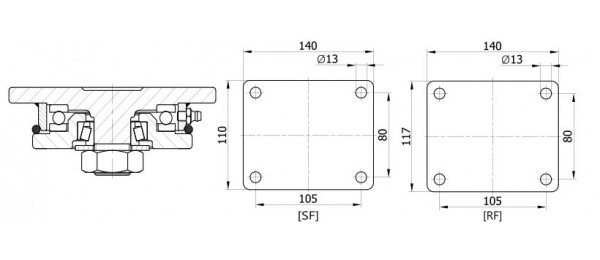

| Size of Plate | ［SF］140 x 110 ［RF］140 x 117mm |
| Plate Hole Centers | 105 x 80 mm |
| Plate Hole | 13 mm |
| Offset | 55 mm |
| Overall Heigh | 175 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 2,300 kg |
| Load Capacity / 4pcs | 6,900 kg |
| Wheel Diameter | 4.92 “ |
| Width of Tread | 1.57 x 2 “ |
| Hardness of Tread | 80 Shore D |
| Size of Plate | ［SF］5.51 x 4.33［RF］5.51 x 4.6 “ |
| Plate Hole Centers | 4.13 x 3.14 “ |
| Plate Hole | 0.51 “ |
| Offset | 2.16 “ |
| Overall Heigh | 6.89 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 5,071 lbs |
| Load Capacity / 4pcs | 15,214 lbs |
