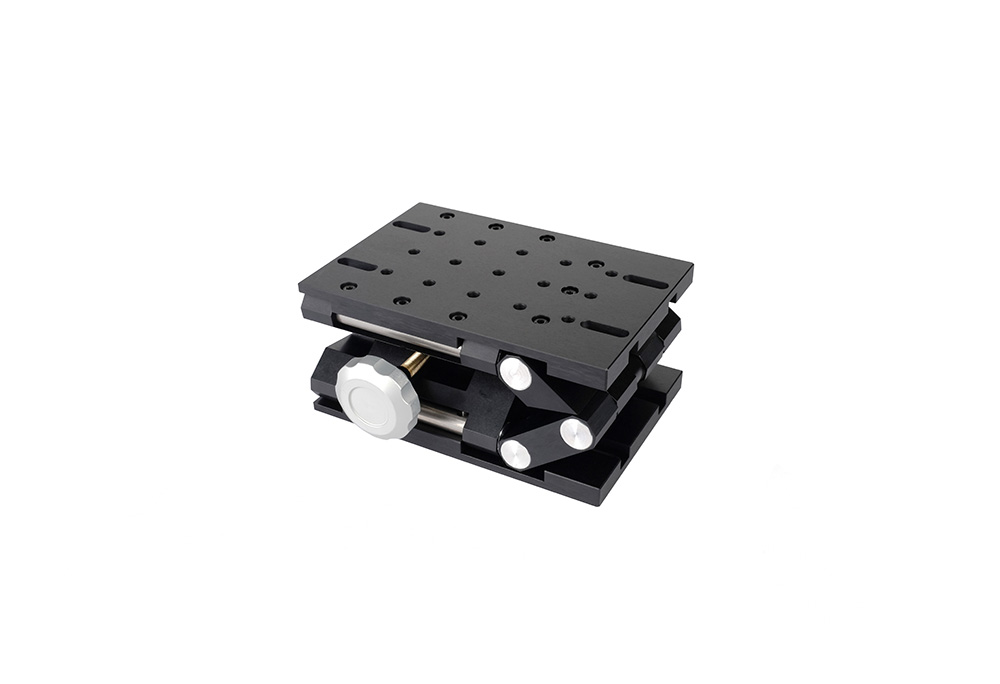

J-LAB JACK > Manual Stage
Brand / Brand:
The amount of movement is read on the vernier scale.
How to read the vernier scale is as follows.
-
Read the zero position of the scale Ⓐ in mm on the scale Ⓑ (29mm in the picture on the right)
-
Look at the scale Ⓐ and read the scale Ⓒ that comes to the same position as the scale Ⓑ (matching between bottom and top scales) (the above figures in 0.1 mm increments)
-
The total measured value of (1) and (2) is 29.6 mm.
| Specification / Model | J-40 | J-70 | ||
|---|---|---|---|---|
| Stage Surface (mm) | 165 X 111 | 240 X 165 | ||
| Z – Travel Min / Max (mm) | 66 / 107 | 76 / 152 | ||
| Stroke (mm) | 40 | 70 | ||
| Resolution (mm) | 1 | 1 | ||
| Travel Guide | Screw / Jack | Screw / Jack | ||
| Material | Aluminum | Aluminum | ||
| Load Capacity (kg/f) | 10 | 15 | ||
| Weight (kg) | 2.57 | 6.1 |

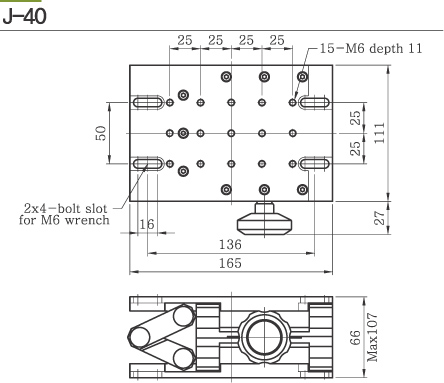

J-40

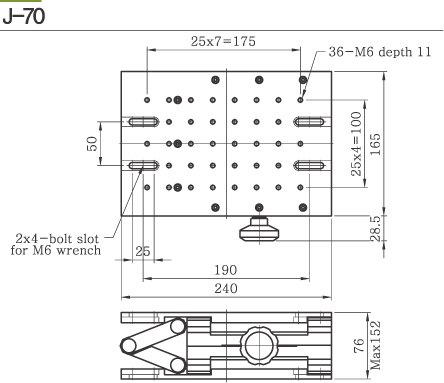

J-70
