JS-60-ASF/ARF-MCD
Brand / Brand:

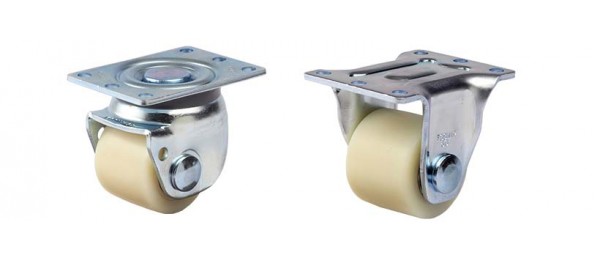

● Model
ㆍJS-60-ASF-MCD(Swivel)
ㆍJS-60-ARF-MCD(Rigid)
* Brackets: High-strength pressed steel plate with even hardened heat treatment, strong integrated pressed steel frame, dust protection cover in the swivel head, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: MC nylon(Shore D80), two ball bearings
| Wheel Diameter | 60 mm |
| Width of Tread | 48 mm |
| Hardness of Tread | 80 Shore D |

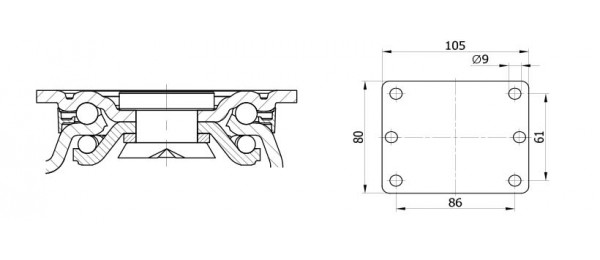

| Size of Plate | 105 x 80 mm |
| Plate Hole Centers | 86 x 61 mm |
| Plate Hole | 9mm |
| Offset | 21 mm |
| Overall Height | 87 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 600 kg |
| Load Capacity / 4pcs | 1,800 kg |
| Wheel Diameter | 2.36 “ |
| Width of Tread | 1.88 “ |
| Hardness of Tread | 80 Shore D |
| Size of Plate | 4.13 x 3.14 “ |
| Plate Hole Centers | 3.38 x 2.40 “ |
| Plate Hole | 0.35 “ |
| Offset | 0.83 “ |
| Overall Height | 3.42 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 1,323 lbs |
| Load Capacity / 4pcs | 3,969 lbs |
