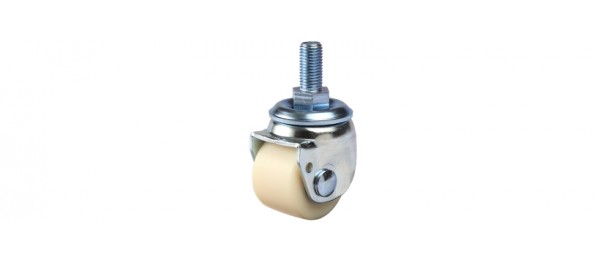

JS-70-ASS-MCD
Brand / Brand:
● Model
ㆍJS-70-ASS-MCD(Swivel)
* Brackets: Forged steel bolt, high-strength pressed steel plate with even hardened heat treatment, strong integrated pressed steel frame, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: MC nylon(Shore D80), two ball bearings
| 바퀴 외경 | 70mm |
| 바퀴 폭 | 48 mm |
| 바퀴 경도 | 80 Shore D |

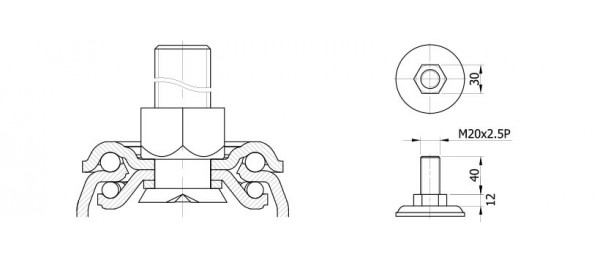

| 취부볼트 사이즈 | M20 x 2.5P |
| 볼트 길이 | 40mm |
| 옵셋 | 21 mm |
| 전체높이 | 108 mm |
| 사용온도 | -10 ~ +90 ℃ |
| 허용하중 / 1개 | 500 kg |
| 허용하중 / 4개 | 1,500 kg |
| Wheel Diameter | 2.75 “ |
| Width of Tread | 1.88 “ |
| Hardness of Tread | 80 Shore D |
| Center Bolt | M20 x 2.5P |
| Bolt Length | 1.57 “ |
| Offset | 0.83 “ |
| Overall Height | 4.25 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 1,102 lbs |
| Load Capacity / 4pcs | 3,307 lbs |
