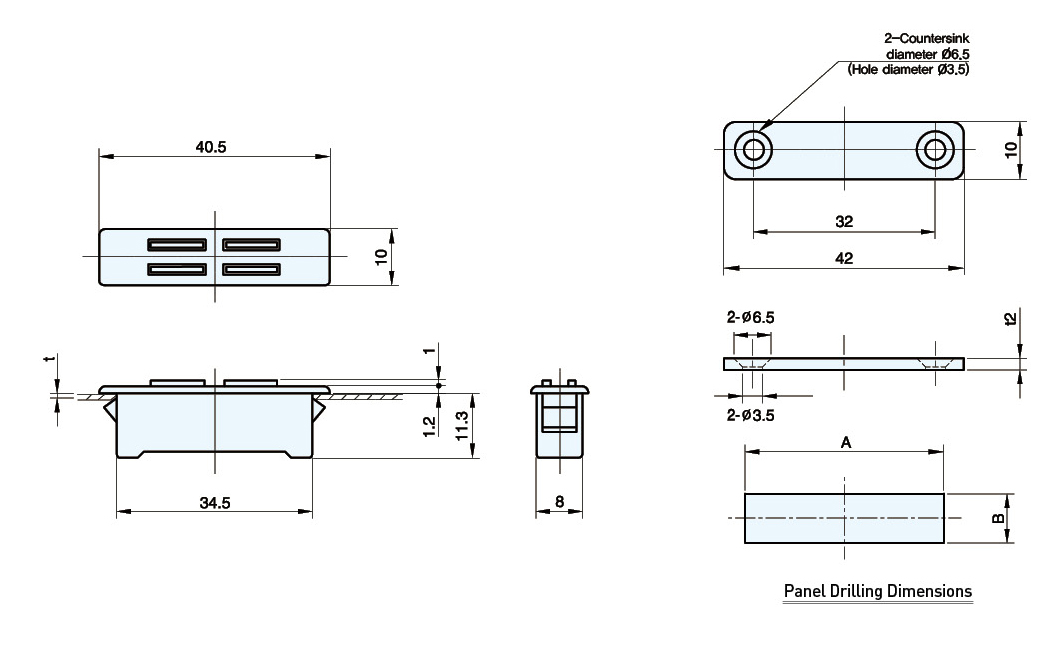

Model Name |
Code Number |
t(Panel thickness) |
A |
B |
KC-M238-1 |
KC00433 |
0.8 |
34.7 |
8.5 |
KC-M238-2 |
KC00434 |
1.0 |
35.0 |
|
KC-M238-3 |
KC00435 |
1.2 |
35.3 |
www.cokhitieuchuan.com
MAKING IT EASIER
KC-M238
Brand / Brand:

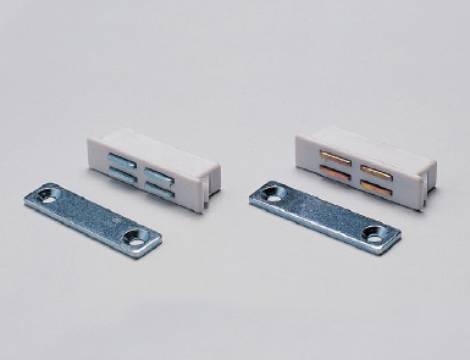

Magnet Catch
Features
- • When assembling the main body, the screw is pushed into the hole without the need for it. It can be used in three types depending on the thickness of the material.
Specification
- • Materials Used : Polyamide (PA6)
- •
Adsorption : KC-M238-1: 1.2kgf, KC-M238-2: 3.5kgf, KC-M238-3: 6kgf - •
Weight : 15.2g - •
Color : White
Use
- • Measuring instruments, OA equipment, Furniture, etc.
