CCD Align Stage

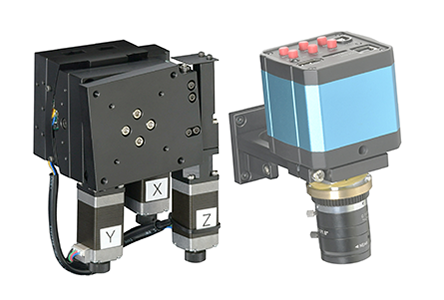

Various vision devices are used for inspection items for each process to improve quality through automatic optical inspection for each production stage. Since the focal length and alignment stage of the vision device are used in combination with the existing stages, it is impossible to achieve miniaturization of the equipment. CCD Align Stage CAS controls 3 axes very precisely because it uses a more compact and precise grinding screw than the existing stage. It also makes the equipment compact and provides convenience.
Specifications
| SPEC | Z-axis | β-axis | θ-axis |
|---|---|---|---|
| Stage surface (mm) | 60×60 | ||
| Stroke (mm) | ±5 | ±3° | ±3° |
| Traver guide | lead screw M4x0.5P Crossroller Guide | ||
| Resolution | 0.001mm/Full step | ≒0.001°/Full step | ≒0.0016°/Full step |
| Maximum Speed | 2mm/sec | 1.86°/sec | 3.18°/sec |
| Repeatability | ±1.5㎛ | ±0.015° | ±0.0005° |
| Load Capacity (Kg) | 1 | ||
| Motor | 5-phase Step motor (PK513PB) | ||
| Sensor | board sensor 2-limits | ||
| Material | Aluminum & Steel | ||
| Weight (Kg) | 1.2 | ||

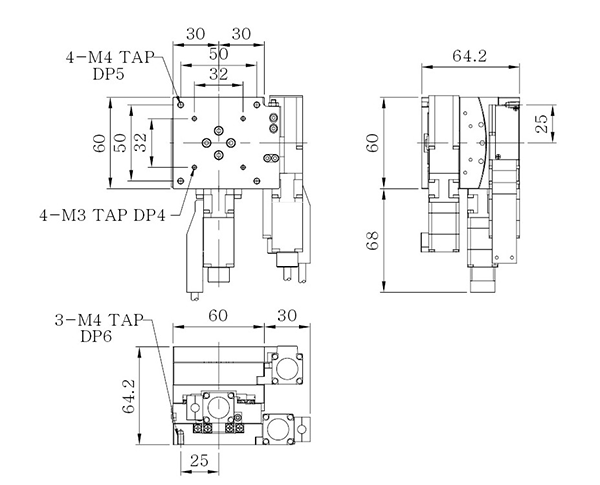

3-axis configuration
|
