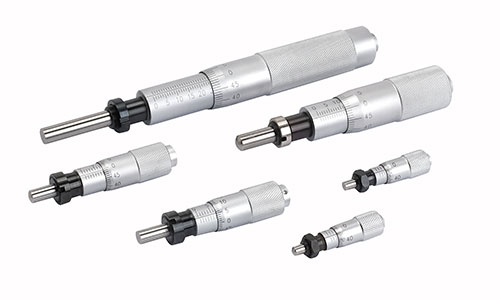

The micrometer head is a device that is generally mounted on the manual stage, and moves 0.5mm per rotation and can be adjusted at a minimum of 0.01mm (10㎛) increments. There is an external and internal thimble and the point where the main scale and the vernier scale crosses are read. Depending on the type, there are R-type or Flat-type edges and depending on the attachment method, there is the general insert method and nut fastening type.

Stage Drive Method

Spec/Model	M-065	M-065N	M-130	M-130N	M-250	M-250N	M-500N
Stroke(mm)	0~6.5	0~6.5	0~13	0~13	0~25	60×70	0~25
Minimum Reading	0.01	0.01	0.01	0.01	0.01	0.01	0.01
Edge Type	Round	Flat	Round	Flat	Round	Flat	Flat
Clamp Nut	Clamp Type	Clamp Type	Clamp Type	Clamp Type	Clamp Type	Clamp Type	Clamp Type
Weight(kg)	0.012	0.012	0.035	0.035	0.09	0.09	0014

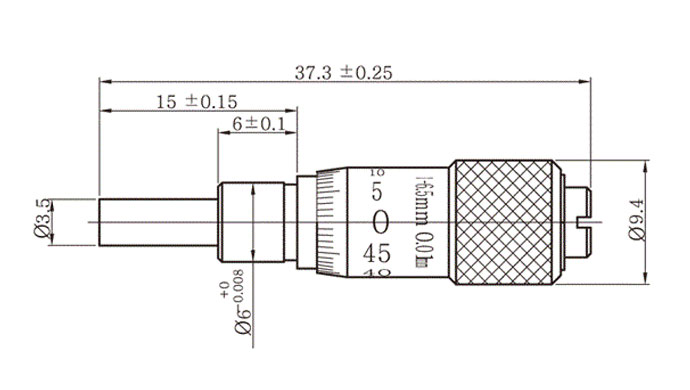

M-065

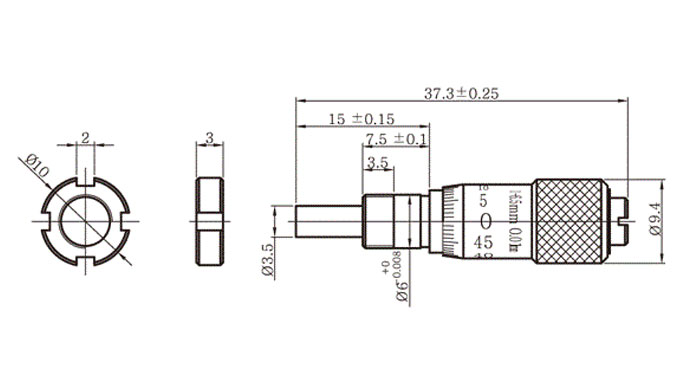

M-065N

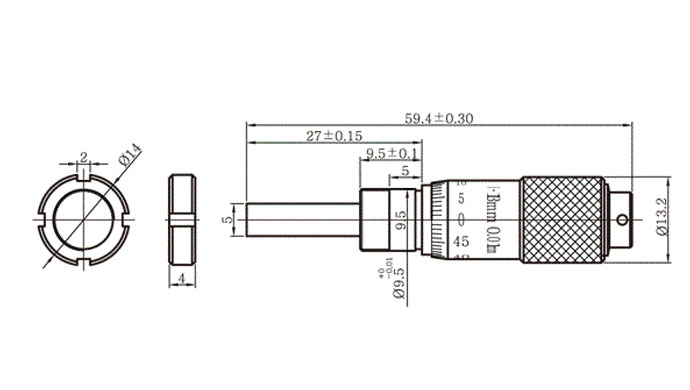

M-130

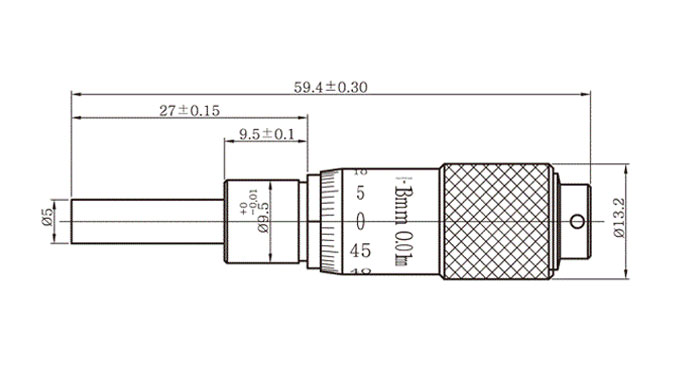

M-130N

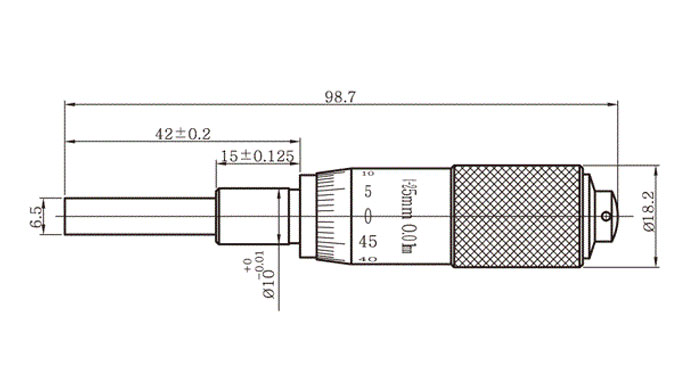

M-250

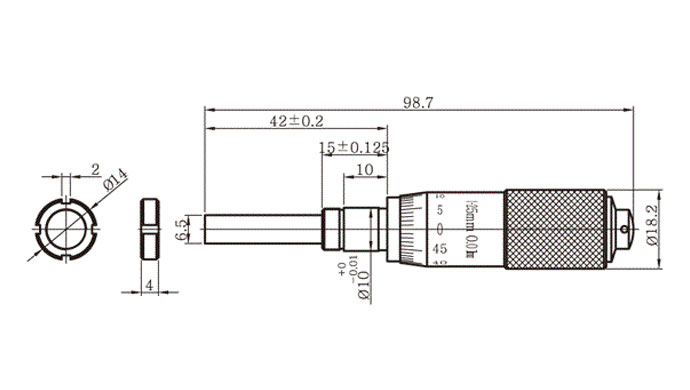

M-250N

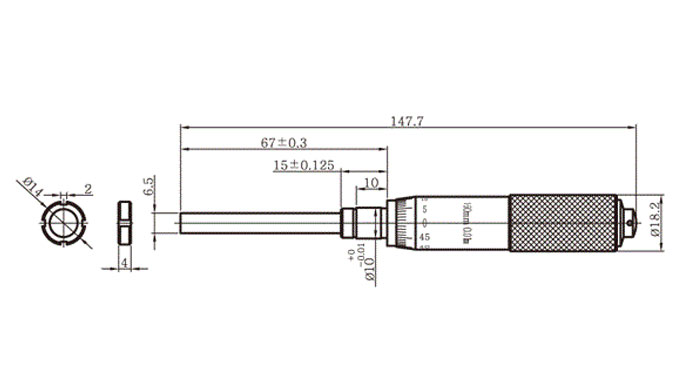

M-500N
