MAKING IT EASIER
P-100-ASS/BSS-HRD
Brand / Brand:

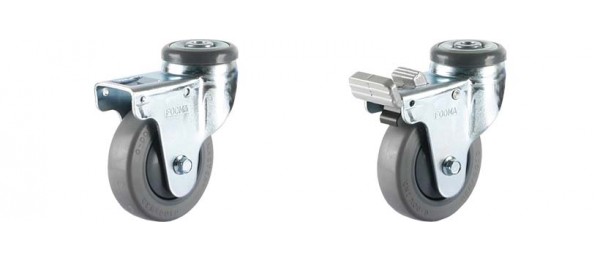

● Model
ㆍP-100-ASS-HRD(Swivel)
ㆍP-100-BSS-HRD(Swivel with brake)

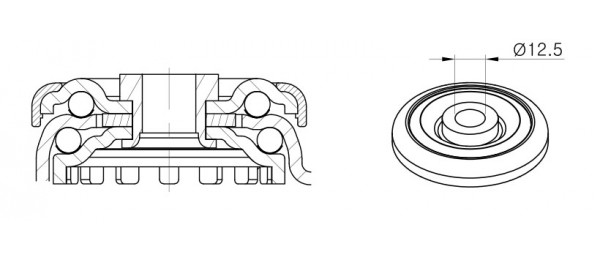

* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, strong integrated pressed steel frame, dust protection cover in the swivel head, total-lock top brake system which is applied in wheel and swivel head simultaneously, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: Injected rubber(Shore A85), PP core, two ball bearings
| Wheel Diameter | 100mm |
| Width of Tread | 30 mm |
| Hardness of Tread | 85 Shore A |
| Center Hole | 12.5 |
| Offset | 45 mm |
| Overall Height | 140 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 100 kg |
| Load Capacity / 4pcs | 300 kg |
| Wheel Diameter | 3.93 “ |
| Width of Tread | 1.18 “ |
| Hardness of Tread | 85 Shore A |
| Center Hole | 0.49 |
| Offset | 1.77 “ |
| Overall Height | 5.50 “ |
| Temperature | 14 ~ 194 ℉ |
| Load Capacity / 1pcs | 220 lbs |
| Load Capacity / 4pcs | 660 lbs |
